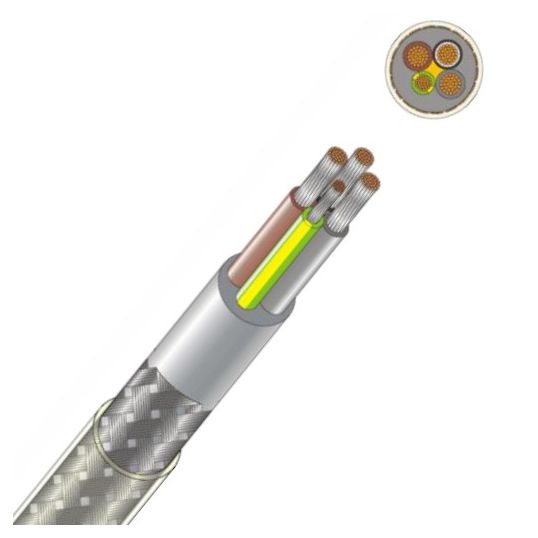

Electra Flexible VSD/EMC Cable Screened 3 Core & Earth 6mm 0.6/1kV Tinned Copper PVC/TACBS/PVC Clear
Description
VSD/EMC Cable, 6 mm, Class 5 Annealed Copper, 0.6-1 kV, 3 Core + Earth, 84/0.3 mm Strands, 18.5 mm Overall Diameter, 2.5 mm Earth Conductor, 1 mm + 0.8 mm Earth Insulation Thickness, 1 mm Sheath Thickness, Tinned Copper Braid Screen, Brown/Blue/Black/Green/Yellow Core, V-90HT PVC Insulation, PVC Sheath, Clear Sheath, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Key Specifications
| SKU |
ELCVSD3060E
|
|---|---|
| Brand |
Electra
|
| Product Type |
VSD/EMC Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | VSD3060E |
| Conductor Size | 6 mm |
| Conductor Type | Class 5 Annealed Copper |
| Core Colours | Brown/Blue/Black/Green/Yellow |
| Earth Conductor Size | 2.5 mm |
| Insulation Material | V-90HT PVC |
| Insulation Thickness | 1 mm + 0.8 mm Earth |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 18.5 mm |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Clear |
| Sheath Material | PVC |
| Sheath Thickness | 1 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 |
| Stranding | 84/0.3 mm |
| Voltage | 0.6-1 kV |
