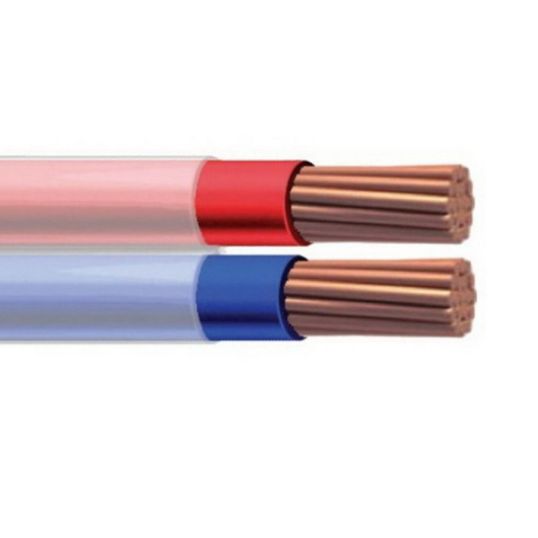

Elcon 16mm 2 Core Clear Flexible Cable Heavy Duty Figure 8 Nitril Modified PVC (NBR)/V-90HT PVC

Description

Flexible Cable, Figure 8 Heavy Duty, 16 mm, Annealed Copper, 0.6-1 kV, 83 Amp, 2 Core, 9.7 mm x 19.5 mm Overall Diameter, 1 mm Insulation Thickness, 1.2 mm Sheath Thickness, DC: 1.18 MOhm/km Insulation Resistance, Red/Blue Core, Nitril Modified PVC (NBR) Insulation, V-90HT PVC Sheath, Clear Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

SKU	ELNCF-FPLN16RLM
Brand	Elcon Cables

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	RoHS Compliant Excellent flexibility UV stabilised 99.9% OFHC (Oxygen Free High Conductivity) copper which does not show any brittleness
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CF-FPLN16RLM
Conductor Size	16 mm
Conductor Type	Annealed Copper
Core Colours	Red/Blue
Current	83 Amp
Insulation Material	Nitrile Modified PVC (NBR)
Insulation Resistance	1.18 MOhm/km
Insulation Thickness	1 mm
Number of Cores	2 Core
Overall Diameter	9.7 mm x 19.5 mm
Sheath Colour	Clear
Sheath Material	V-90HT PVC
Sheath Thickness	1.2 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
