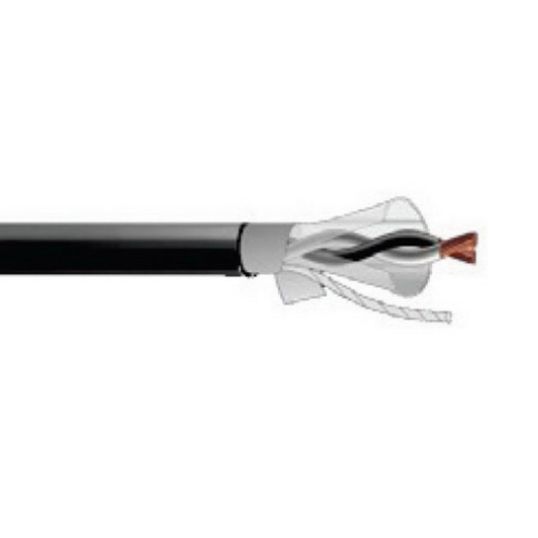

Elcon 0.88mm 2 Pair Instrumentation Cable Unarmoured Overall Screened

Description

Instrumentation Cable, Unarmoured, 0.88 mm, Class 2 Annealed Copper, 100 Volt, 2 Pair, 7/0.4 mm Strands, Overall Screened Screen, 8 mm Overall Diameter, 48 mm Static/64 mm Flexible Bend Radius, 21.30 MOhm/m Insulation Resistance, 1.65 mm Insulation Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90 PVC Insulation, V-90 PVC Sheath, Black Sheath, -25 to 90 deg C

Key Specifications

SKU	ELNCI-INST2P1BM
Brand	Elcon Cables
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CI-INST2P1BM
Bend Radius	Static 48 mm/Flexible 64 mm
Conductor Size	0.88 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Black/White Numerals
Insulation Material	V-90 PVC
Insulation Resistance	21.30 MOhm/m
Number of Pairs	2 Pair
Insulation Thickness	1.65 mm
Overall Diameter	8 mm
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Black
Sheath Material	V-90 PVC
Stranding	7/0.4 mm
Temperature	-25 to 90 deg C
Voltage	100 Volt
