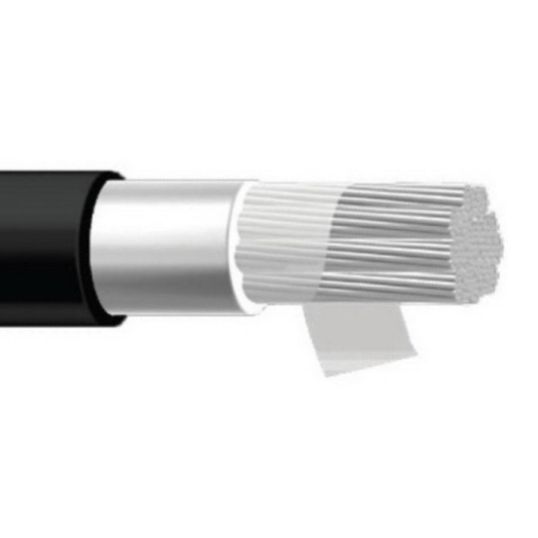

Elcon Cables 16mm SDI Cable 100mtr

chevron-left

Description

chevron-down
SDI Cable, 16 mm, Tinned Annealed Copper, 1.9-3.3 kV, 130 Amp, 1 Core, 123/0.41 mm Strands, 11.1 mm Overall Diameter, 100 mtr Length, Static 44.4 mm Flexible 55.5 mm Bend Radius, 1.5 mm Insulation Thickness, 0.8 mm Sheath Thickness, DC: 1.24 MOhm/m Insulation Resistance, 3GI3 Special EPR Compound Insulation, 5GM3 Rubber Sheath, Black Sheath, -25 to 110 deg C

Key Specifications

chevron-down
SKU
ELNCR-SDI16B3.3KVM
Brand
Elcon Cables
Product Type
SDI Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Excellent flexibility
  • Flame retardant and submersible to 100 m
  • UV, sunlight, ozone, oil resistant
Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product CR-SDI16B3.3KVM
Bend Radius Static 44.4 mm/Flexible 55.5 mm
Conductor Size 16 mm
Conductor Type Tinned Annealed Copper
Current 130 Amp
Insulation Material 3GI3 Special EPR Compound
Insulation Resistance DC: 1.24 MOhm/m
Insulation Thickness 1.5 mm
Number of Cores 1 Core
Overall Diameter 11.1 mm
Sheath Colour Black
Sheath Material 5GM3 Rubber
Sheath Thickness 0.8 mm
Temperature -25 to 110 deg C
Stranding 123/0.41 mm
Voltage 1.9-3.3 kV
