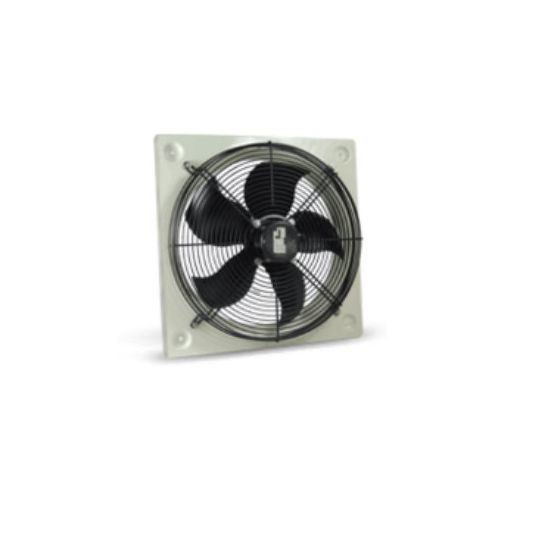

FantechTrade Ceiling andWall Mount Exhaust Fan 200mm 220/240V AC 16W 504 cu-m/hr 30 dBA at 3m 1300 rpmWhite

$FantechTrade\FantechTrade_HXM200_300.jpg$

Description

Ceiling and Wall Mount Exhaust Fan, Fan Size: 200mm, 220/240 Volt AC, 16 Watt, 50 Hz, Phase: 1 Phase, Air Flow Rate (cu-m/hr): 504 cu-m/hr, Air Flow Rate (l/sec): 140 l/sec, 30 dBA at 3m, Speed: 1300 rpm, IP44, Ceiling/Wall Mounting, 40 deg C, Galvanised Steel, White, Epoxy Polyester Paint, 266mm Height, 211mm Dia

Key Specifications

Barcode (EAN-13)	841389300141
SKU	FANHXM200
Brand	FantechTrade
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The HXM Series of square plate fans is specifically designed for general ventilation exhaust applications Suitable for wall mounting only and available in sizes 200 to 400mm for 230V supply Finger-proof inlet guard Speed-controllable motors High air flow at a low cost Light weight metal construction Self setting thermal cut-out switch Speed-controllable
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	HXM-200
Colour	White
Air Flow Litres per Second	140 l/sec
Air Flow Cubic Meters per Hour	504 cu-m/hr
Diameter	211 mm
Fan Size	200 mm
IP Rating	IP44
Finish	Epoxy Polyester Paint
Frequency	50 Hz
Height	266 mm
Material	Galvanised Steel
Phase	1 Phase
Mounting Method	Ceiling/Wall
Sound Level	30 dBA at 3 mtr
Temperature	40 deg C
Speed	1300 rpm
Voltage	220-240 Volt
Wattage	16 Watt
