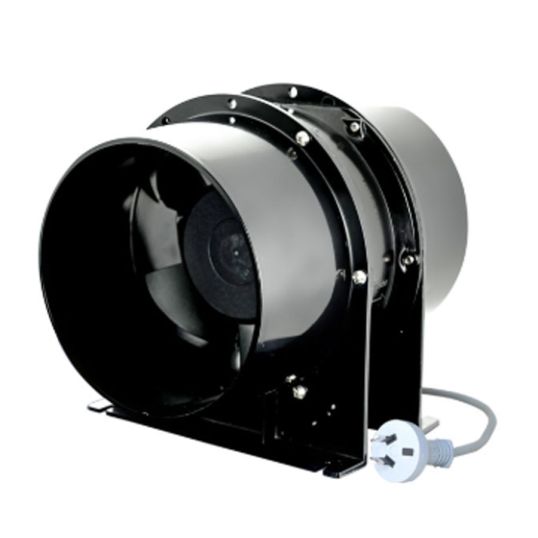

FantechTrade In-Line Axial Exhaust Fan 150mm 230 Volt 0.14 Amp 43dBA at 3m Black

chevron-left

Description

chevron-down
The Minitube Series of duct mounted axial fans is suitable for exhausting or supplying air in domestic and commercial applications such as bathrooms, toilets, ensuites and apartments.

Key Specifications

chevron-down
Barcode (EAN-13)
932597100108
SKU
FANMTP132
Brand
FantechTrade
Product Type
Exhaust fans

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Choice of two light weight but robust housing materials, metal or injection moulded plastic
  • MTP range matches 150mm, 200mm, 250mm and 300mm standard duct sizes
  • Can be speed controlled
  • Can be mounted in any position
  • An extensive range of matching ancillary equipment is available
  • Includes robust mounting feet
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product MTP132
Colour Black
Current 0.14 Amp
Fan Size 150 mm
Fan Speed 46 rps
Frequency 50 Hz
Height 147 mm
IP Rating IP44
Material Aluminium
Motor Type External Rotor/Squirrel Cage Induction
Mounting Method In-Line
Noise Level 43 dBA at 3 mtr
Phase 1 Phase
Temperature 44 deg C
Voltage 230 Volt
Wattage 0.028 kW
