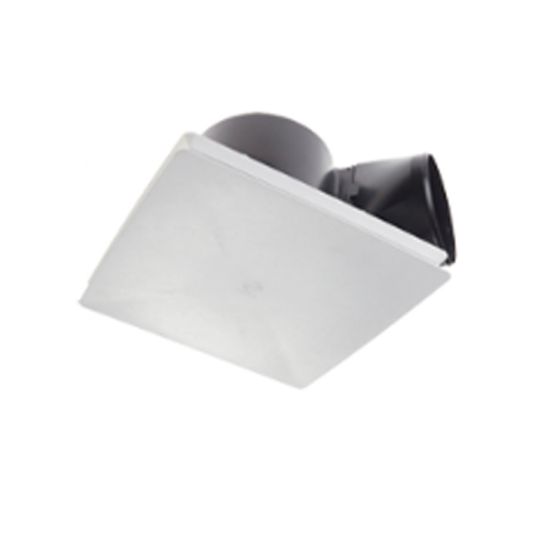

Fantech Ceiling Mount Header Box Fan 150mm 240V 0.27 Amp 0.06 kW 349 cu-m/hr 37 dBA at 3m 16 rps

Description

Exhaust Fan Header Box Ceiling, 150 mm, 240 Volt, 0.27 Amp, 0.06 kW, 50 Hz, 1 Phase Phase, 349 cu-m/hr, 97 l/sec, 37 dBA at 3 mtr, 16 rps, Squirrel Cage Induction Motor, Ceiling Mounting, 40 deg C, 197 mm Height

Key Specifications

Barcode (EAN-13)	9325971008741
SKU	FANRESPF150T
Brand	Fantech
Product Type	Ceiling Fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Advanced impeller and housing design provides powerful air flow and minimises noise High strength swing clips make installation easy Low resistance non-return backdraft damper maximises air flow performance Easy to remove diffuser makes cleaning simple Can be retrofitted into a standard 10 in round fan cut out Fitted plug and lead simplifies installation Square diffuser can be easily rotated to align with walls
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	RESPF150T
Air Flow Cubic Meters per Hour	349 cu-m/hr
Current	0.27 Amp
Air Flow Litres per Second	97 l/sec
Fan Size	150 mm
Height	197 mm
Frequency	50 Hz
Mounting Method	Ceiling
Motor Type	Squirrel Cage Induction
Phase	1 Phase
Sound Level	37 dBA at 3 mtr
Speed	16 rps
Temperature	40 deg C
Wattage	0.06 kW
Voltage	240 Volt
