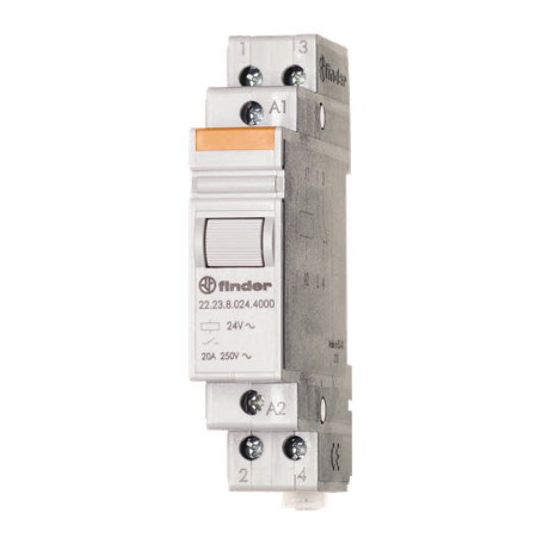

Finder Modular Step Relay Din Mount 1NO-1NC 16A 240V DIN 35 Rail Mount
Description
Modular Step Relay Din Mount, 250 Volt AC, 240 Volt AC Coil Voltage, 16 Amp, 5 Watt, 1 Normally Opened/1 Normally Closed Configuration, 2700 Ohm, 100000 Cycles, DIN Rail Mounting, IP20, Silver Nickel (Ag/Ni) Contact, -40 to 40 deg C, 17.4 mm Width
Key Specifications
| Barcode (EAN-13) |
8012823237077
|
|---|---|
| SKU |
FID20.23AC240
|
| Brand |
Finder
|
| Product Type |
Step Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | 2023240VAC |
| Contact Configuration | 1 Normally Opened/1 Normally Closed |
| IP Rating | IP20 |
| Current | 16 Amp |
| Mounting Method | DIN Rail |
| Contact Material | Silver Nickel (Ag/Ni) |
| Operating Coil Voltage | 240 Volt AC |
| Operating Cycles | 100000 Cycles |
| Power Rating | 5 Watt |
| Resistance | 2700 Ohm |
| Temperature | -40 to 40 deg C |
| Voltage | 250 Volt AC |
| Width | 17.4 mm |
