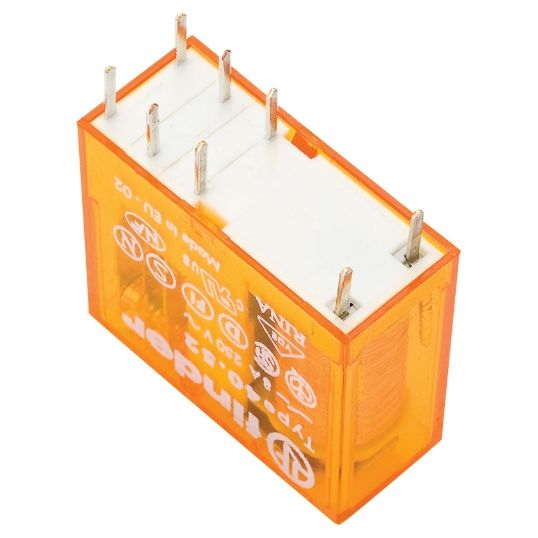

Finder Miniature Relay Plug In Or PCB Mounting 2P 2CO 8A 12V 8 Pin PCB

chevron-left

Description

chevron-down
Miniature Relay Plug In Or PCB Mounting, 250 Volt AC, 12 Volt AC, 8 Amp, 400 kW, 8 Pin PCB, 2 Pole, 2CO, Operating Time: 3 Breaking/7 Making ms, 100000 Cycles, Plug-In Mount/PCB, Silver Nickel, -45 to 85 deg C, 25 mm Height, 29 mm Width, 12.4 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
8012823240152
SKU
FID40.5212VAC
Brand
Finder
Range Name
Series 40
Product Type
Plug-in Relays

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Complete range from PCB to power relays to cover all of your switching requirements
  • Compact construction allowing for most efficient use of space
  • Without LED, test switch
Standard Pack Size 1
UNSPSC Class 39122300
UOM EA
Vendor Product 405212VAC
Contact Material Silver Nickel
Current 8 Amp
Contact Configuration 2 Changeover
Mounting Method Plug-In/PCB
Depth 12.4 mm
Height 25 mm
Number Of Poles 2 Pole
Operating Coil Voltage 12 Volt AC
Operating Cycles 100000 Cycles
Operating Time 3 Breaking/7 Making ms
Pin Configuration 8 Pin PCB
Power Rating 400 kW
Temperature -45 to 85 deg C
Voltage 250 Volt AC
Width 29 mm
