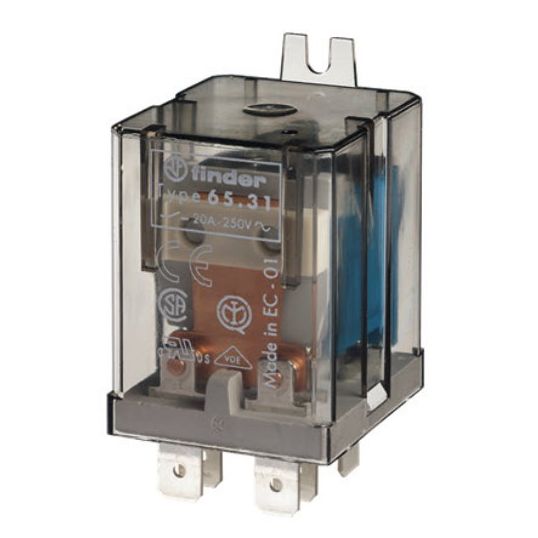

Finder General Purpose Relay Plug-In/Flange Mount 4P 1NO 30A 240V 4 Pin Flat
Description
General Purpose Relay, 250 Volt AC, 240 Volt AC, 30 Amp, 1.1 kW, 4 Pin Flat, 1NO, 8500 Ohm, Operating Time: 12 Breaking/10 Making ms, 80000 Cycles, Plug-In Mount/Flange, Silver Cadmium Oxide, -40 to 75 deg C, 52.5 mm Height, 32.2 mm Width, 36.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
8012823070216
|
|---|---|
| SKU |
FID65.31M240VAC
|
| Brand |
Finder
|
| Range Name |
Series 65
|
| Product Type |
Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | 6531M240VAC |
| Contact Configuration | 1 Normally Opened |
| Depth | 36.5 mm |
| Height | 52.5 mm |
| Current | 30 Amp |
| Mounting Method | Plug-In/Flange |
| Contact Material | Silver Cadmium Oxide |
| Operating Coil Voltage | 240 Volt AC |
| Operating Cycles | 80000 Cycles |
| Pin Configuration | 4 Pin Flat |
| Operating Time | 12 Breaking/10 Making ms |
| Power Rating | 1.1 kW |
| Resistance | 8500 Ohm |
| Temperature | -40 to 75 deg C |
| Voltage | 250 Volt AC |
| Width | 32.2 mm |
