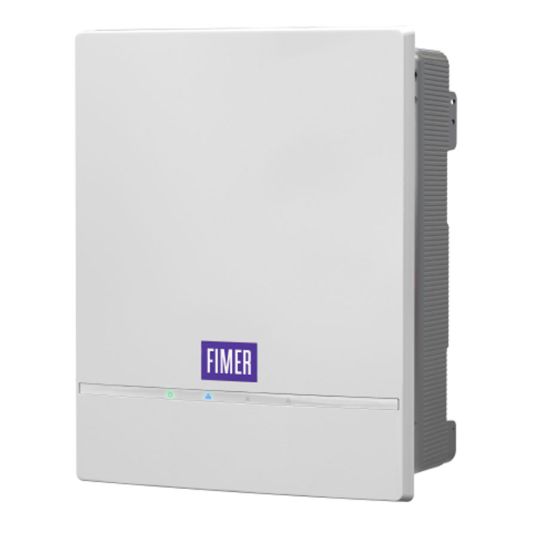

Fimer SPA String Inverter 2 MPPT 3 Phase 15000W 2x22A
Description
Solar Inverter, 3 Phase, 15300 Watt DC Input, 1100 Volt DC Input, 200-1000 Volt DC Operating, 460-850 Volt DC MPPT Voltage Range, 250-500 Volt (Default 360 Volt) DC Start-up, 2 x 22 Amp DC Max. Input, 2 MPPTs, 15000 Watt AC Output, 15000 VA AC Max. Apparent, 50/60 Hz AC Operating, 23 Amp AC Output, >0.995, 0.8-1 Inductive/Capacitive Power Factor, <3% Harmonic Distortion, 98.5% Efficiency, 98.2% European Weighted Efficiency, Grid Connected, Double Stage, Transformerless, 4000 mtr (Derating Above 2000 mtr) Max. Altitude, Double Ethernet Port, WLAN, RS485 Port Communication Port, Natural Cooling Cooling, PV Quick Fit Connector/AC Quick Fit Connector Connection, Bracket Mounting, IP65, 4K26 (IEC 60721-3-4), -25 to 60 deg C (Derating Above 45 deg C), 4-100% Condensing Relative Humidity, 568.2 mm Height, 473.6 mm Width, 207 mm Depth, 29.6 kg, EC 61683, EN 50530, IEC 62116, IEC 61727, AS/NZS 4777.2, IEC/EN 62109-1, IEC/EN 62109-2, EN 61000-6-1, EN 61000-6-2
Key Specifications
| SKU |
FIM3Q029902000F
|
|---|---|
| Brand |
Fimer SPA
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | 3Q029902000F |
| AC Max. Apparent Power | 15000 VA |
| AC Operating Frequency | 50/60 Hz |
| AC Output Current | 23 Amp |
| AC Output Power | 15 kW |
| Communication Port | Double Ethernet Port/WLAN/RS485 Port |
| Climate Category | 4K26 (IEC 60721-3-4) |
| Connection Type | PV Quick Fit Connector/AC Quick Fit Connector |
| Cooling Method | Natural |
| DC Input Power | 15300 Watt |
| DC Input Voltage | 1100 Volt |
| DC Max. Input Current | 2 x 22 Amp |
| DC MPPT Voltage Range | 460-850 Volt |
| DC Operating Voltage | 200-1000 Volt |
| DC Start-up Voltage | 250-500 Volt (Default 360 Volt) |
| Depth | 207 mm |
| Efficiency | 98.50% |
| European Weighted Efficiency | 98.20% |
| IP Rating | IP65 |
| Height | 568.2 mm |
| Max. Operating Altitude | 4000 mtr (Derating Above 2000 mtr) |
| Mounting Method | Bracket |
| Number of MPPTs | 2 |
| Operating Temperature | -25 to 60 deg C (Derating Above 45 deg C) |
| Phase | 3 Phase |
| Power Factor | >0.995 0.8-1 Inductive/Capacitive |
| Relative Humidity | 4-100% Condensing |
| Topology | Grid Connected Double Stage Transformerless |
| Total Harmonic Distortion | <3% |
| Width | 473.6 mm |
