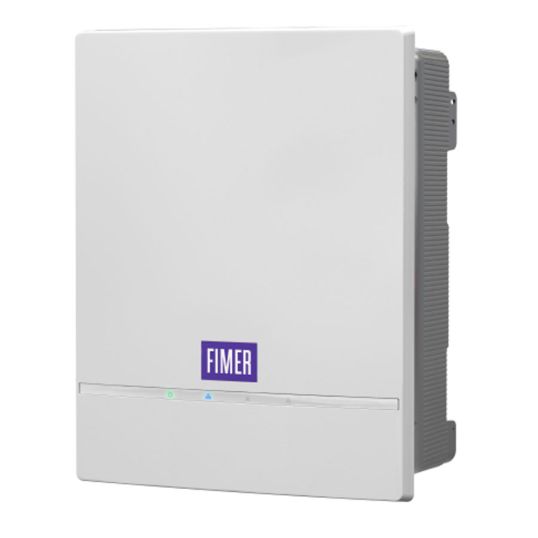

Fimer SPA String Inverter 4 MPPT 3 Phase 20000W 2x26A+2x22A
Description
Solar Inverter, 3 Phase, 20500 Watt DC Input, 1100 Volt DC Input, 200-1000 Volt DC Operating, 460-850 Volt DC MPPT Voltage Range, 250-500 Volt (Default 430 Volt) DC Start-up, 2 x 26 Amp + 2 x 22 Amp DC Max. Input, 4 MPPTs, 20000 Watt AC Output, 22000 VA AC Max. Apparent, 50/60 Hz AC Operating, 33.4 Amp AC Output, >0.995, 0-1 Inductive/Capacitive Power Factor, <3% Harmonic Distortion, 98.4% Efficiency, 98.2% European Weighted Efficiency, Grid Connected, Double Stage, Transformerless, 4000 mtr Max. Altitude, Dual Ethernet Port, WLAN, Advanced RS-485 Port (Optional) Communication Port, Forced Air Cooling, PV Quick Fit Connector/Detachable Terminal Block Connection, Single Bracket (Vertical & Horizontal Installation) Mounting, IP65, 4K26 (IEC 60721-3-4), -25 to 60 deg C (Derating Above 45 deg C), 4-100% Condensing Relative Humidity, 675 mm Height, 591.8 mm Width, 227.5 mm Depth, 50 kg, IEC/EN 62109-1, IEC/EN 62109-2, EN 61000-6-1, EN 61000-6-2
Key Specifications
| SKU |
FIM3Q049905000F
|
|---|---|
| Brand |
Fimer SPA
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | 3Q049905000F |
| AC Max. Apparent Power | 22000 VA |
| AC Operating Frequency | 50/60 Hz |
| AC Output Current | 33.4 Amp |
| AC Output Power | 20 kW |
| Communication Port | Dual Ethernet Port/WLAN/Advanced RS-485 Port (Optional) |
| Climate Category | 4K26 (IEC 60721-3-4) |
| Connection Type | PV Quick Fit Connector/Detachable Terminal Block |
| Cooling Method | Forced Air |
| DC Input Power | 20500 Watt |
| DC Input Voltage | 1100 Volt |
| DC Max. Input Current | 2 x 26 Amp + 2 x 22 Amp |
| DC MPPT Voltage Range | 460-850 Volt |
| DC Operating Voltage | 200-1000 Volt |
| DC Start-up Voltage | 250-500 Volt (Default 430 Volt) |
| Depth | 227.5 mm |
| Efficiency | 98.40% |
| European Weighted Efficiency | 98.20% |
| IP Rating | IP65 |
| Height | 675 mm |
| Max. Operating Altitude | 4000 mtr |
| Mounting Method | Single Bracket (Vertical & Horizontal Installation) |
| Number of MPPTs | 4 |
| Operating Temperature | -25 to 60 deg C (Derating Above 45 deg C) |
| Phase | 3 Phase |
| Power Factor | >0.995 0-1 Inductive/Capacitive |
| Relative Humidity | 4-100% Condensing |
| Topology | Grid Connected Double Stage Transformerless |
| Total Harmonic Distortion | <3% |
| Width | 591.8 mm |
