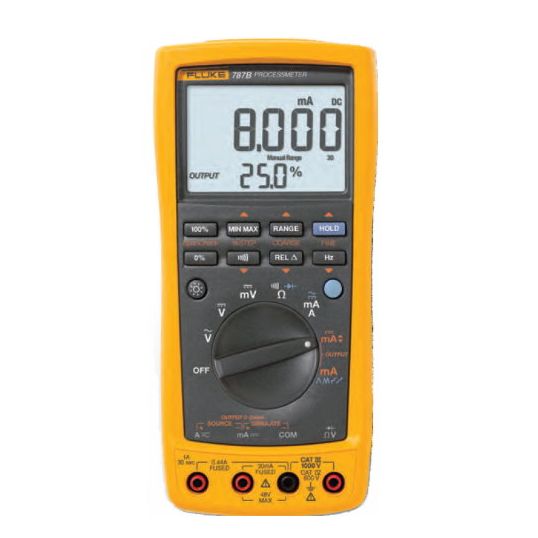

Fluke Process Meter w/Loop Calibrator

chevron-left

Description

chevron-down
Process Meter, 400 mV/4 Volt/40 Volt/400 Volt/1000 Volt AC/DC, 30 mA/1 Amp AC/DC, 199.99 Hz/1999.9 Hz/19.999 kHz, 400 Ohms/4 kOhm/40 kOhm/400 kOhm/4 MOhm/40 MOhm, 4 x AA Alkaline Battery, -20 to 55 deg C, 0.7% + 2 AC, 0.1% + 1 DC Accuracy, 203mm Length x 100mm Width x 50mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
095969819930
SKU
FLU787B
Brand
Fluke

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Compact digital multimeter and mA loop calibrator solution
  • Measure/Source/Simulate loop currents while powering the loop
  • Manual and automatic ramp up -ramp down functions
  • Easy-to-read backlit display
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product FLU787B
Current 30 mA-1 Amp AC/DC
Dimensions 203mm Length x 100mm Width x 50mm Height
Frequency 199.99 Hz/1999.9 Hz/19.999 kHz
Power Supply 4 x AA Alkaline
Product Type Process Meter
Resistance 400 Ohms/4 kOhm/40 kOhm/400 kOhm/4 MOhm/40 MOhm
Temperature -20 to 55 deg C
Voltage 400 mV 4-40-400-1000 Volt AC/DC
