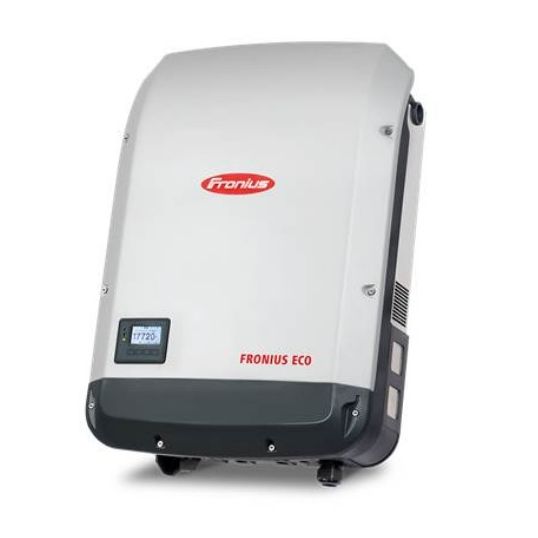

Fronius Eco Solar Inverter Transformerless 1 MPPT Three Phase 25kW 44.2A
Description
Solar Inverter Grid-Connected, 3 Phase, 580-1000 Volt DC Input, 580 Volt DC Nominal, 580-850 Volt DC MPPT Voltage Range, 650 Volt DC Start-up, 44.2 Amp Max. Input, 1 MPPTs, 25 kW Output, 25 kVA Max. Apparent, 150-275 Volt AC Operating, 50/60 Hz, 37.9/36.2 Amp Output, 0-1 Inductive/Capacitive Power Factor, < 2% Harmonic Distortion, 98.2% Efficiency,, Transformerless, 2.000 mtr Max. Altitude, WLAN/LAN, USB (Type A Socket), 2x RS422 (RJ45 Socket), RS485, Regulated Air Cooling, IP66, -25 to 60 deg C, 0-100% Relative Humidity, 510 mm Width, 35.7 kg
Key Specifications
| SKU |
FRNECO25.0-3-S
|
|---|---|
| Brand |
Fronius
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 8 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | ECO25.0-3-S |
| AC Max. Apparent Power | 25 kVA |
| AC Operating Frequency | 50/60 Hz |
| AC Operating Voltage | 150-275 Volt |
| AC Output Current | 37.9-36.2 Amp |
| AC Output Power | 25 kW |
| Communication Port | WLAN/LAN/USB (Type A Socket)/2x RS422 (RJ45 Socket)/RS485 |
| Cooling Method | Regulated Air |
| DC Input Voltage | 580-1000 Volt |
| DC Max. Input Current | 44.2 Amp |
| DC MPPT Voltage Range | 580-850 Volt |
| DC Nominal Voltage | 580 Volt |
| DC Start-up Voltage | 650 Volt |
| Efficiency | 98.20% |
| European Weighted Efficiency | 98% |
| IP Rating | IP66 |
| MPPT Efficiency | > 99.9% |
| Number of MPPTs | 1 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 3 Phase |
| Power Factor | 0 -1 Inductive/Capacitive |
| Relative Humidity | 0-100% |
| Topology | Transformerless |
| Width | 510 mm |
