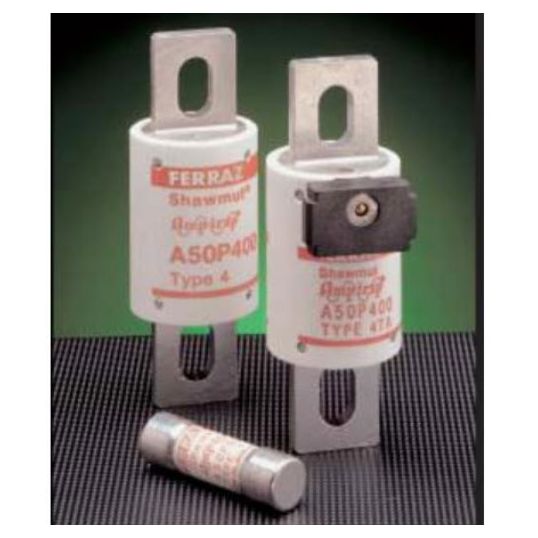

Ferraz Shawmut Semiconductor Fuse Link Bolt In Centre 20A 500VAC/450VDC 100kA AC/79kA DC 14x51mm

chevron-left

Description

chevron-down
Semiconductor Fuse Link Bolt In Centre, 500 VAC/450 VDC, 20 Amp, Round, Interrupt Capacity: 100 kA AC/79 kA DC, Bolt In Centre Tag, 14mm Diameter x 51mm Length

Key Specifications

chevron-down
Barcode (EAN-13)
782001949921
SKU
FRZA50P20-1
Brand
Ferraz Shawmut
Product Type
Fuse Links Semiconductor

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design
  • Very fast acting, current limiting, Protection of DC drives, UPS and other equipment of 500 volts or less
Standard Pack Size 10
UNSPSC Class 39121600
UOM EA
Vendor Product A50P20-1
Current 20 Amp
Dimensions 14 mm Diameter x 51 mm Length
Interrupt Capacity 100 kA AC/79 kA DC
Tag Type Bolt In Centre
Voltage 500 Volt AC/450 Volt DC
