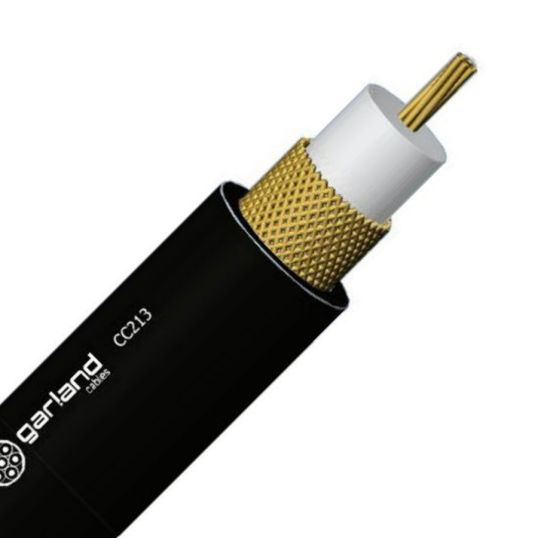

Garland Pro Series RG213 Coaxial Cable 2.7mm 7/0.7mm PE/PVC Black 100M

chevron-left

Description

chevron-down
RG213 Coaxial Cable, 2.7 mm, PACW, 2.14 mm Conductor Diameter, Bend Radius: Install: 103 mm, Pulling Tension: 188 N, Tensile Strength: Before Aging >12 MPa, Stranding: 7/0.7 mm, Insulation Thickness: 2.5 mm, Sheath Thickness: 1.15 mm, Conductor Resistance: DC: 6.5 Ohm/km at 20 deg C, Insulation Resistance: 1000 MOhm.km, Capacitance: Conductor to Shield: 101 +/-2 pF/mtr, 50 +/-3 Ohm Impedance, PACW 91% Coverage Braid, Solid Polyethylene Insulation, PVC Sheath, Black (RAL 9004) Sheath, 10.3 mm Overall Diameter, 100 mtr Length,-15 to 70 deg C

Key Specifications

chevron-down
Barcode (EAN-13)
9329849000158
SKU
GARCC213100
Brand
Garland

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 100
UNSPSC Class 52161600
UOM MTR
Vendor Product CC213100
Product Type simple
Temperature 15 to 70 deg C
