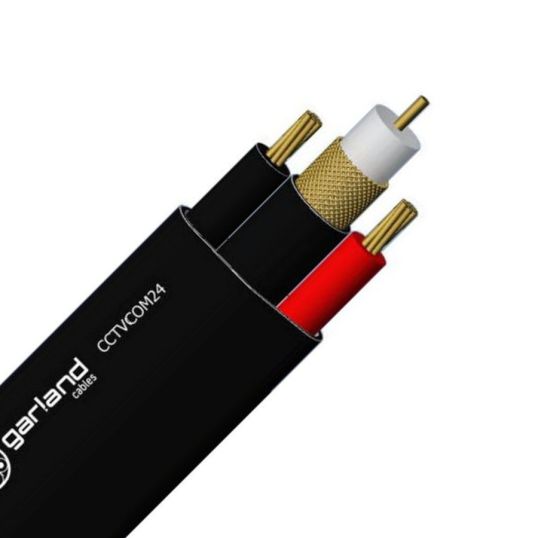

Garland Pro Series Composite Coaxial RG59 + Fig 8 CCTV 1/0.6+24/0.2mm PE/PVC Black/Red
Description
Composite Coaxial RG59 + Fig 8 CCTV, RG59: 0.29 mm, TCW24: 0.75 mm, RG59: Solid PE, TCW24: PACW, RG59: 0.6 mm, TCW24: 1.13 mm Conductor Diameter, Bend Radius: Install: 80mm, Elongation: Before Aging Insulation: >300% and >100%, Before Aging Sheath: >100%, Pulling Tension: 275 N, Tensile Strength: Before Aging >12 MPa, Stranding: RG59: 1/0.6mm, TCW24: 24/0.2mm, Insulation Thickness: RG59: 1.5mm, TCW24: 0.75mm, Sheath Thickness: RG59: 0.9mm, TCW24: 0.65mm, Conductor Resistance: DC: 62 Ohm/km at 20 deg C, Capacitance: Conductor to Shield: 67 +/-2 pF/mtr, 75 +/-3 Ohm Impedance, RG59: PACW 84% Coverage Braid, RG59: Solid PE, TCW24: PVC Insulation, RG59: PVC, TCW24: PVC Sheath, RG59: Black; TCW24: Black, Red Sheath, RG59: 6.2mm, TCW24: 7.8 mm x 13 mm Overall Diameter,-15 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
9329849007201
|
|---|---|
| SKU |
GARCCTVCOM24100
|
| Brand |
Garland
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 52161600 |
| UOM | MTR |
| Vendor Product | CCTVCOM24100 |
| Temperature | 15 to 70 deg C |
| Product Type | simple |
