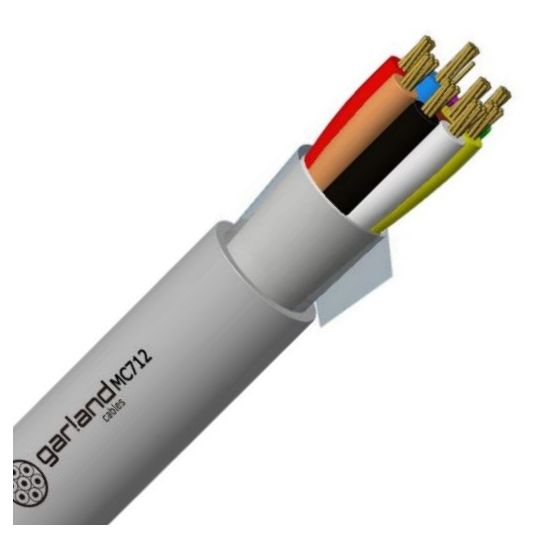

Garland Pro Series Security Cable Unscreened 12 Core 0.22mm 7/0.2mm PVC/PVC Grey

Description

Security Cable, Unscreened, 12 Core, 0.22 mm, Plain Annealed Copper, 7/0.2 mm Strands, 6.3 mm Overall Diameter, Bend Radius: Static: - 63 mm, 0.3 mm Insulation Thickness, 0.6 mm Sheath Thickness, Elongation: Insulation - >100%, Outer Sheath - >100%, 184 N Pulling Tension, Before Aging - >12 MPa Tensile Strength, Conductor Resistance: 93.3 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, PVC Sheath, White Red Black Yellow Brown Orange Pink Grey Blue Violet Green Light Brown Cores, Grey Sheath, -15 to 70 deg C, AS/ACIF S008, BS4737-3.30

Key Specifications

Barcode (EAN-13)	9329849005528
SKU	GARMC712GY500
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC712GY500
Bend Radius	Static 63 mm
Conductor Resistance	93.3 Ohm/km
Conductor Size	0.22 mm
Conductor Type	Annealed Copper
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.3 mm
Number of Cores	12 Core
Overall Diameter	6.3 mm
Pulling Tension	184 N
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	0.6 mm
Standards	AS/ACIF S008 BS3737-3.30
Stranding	7/0.2 mm
Temperature	-15 to 70 deg C
Tensile Strength	Before Aging: >12 MPa
