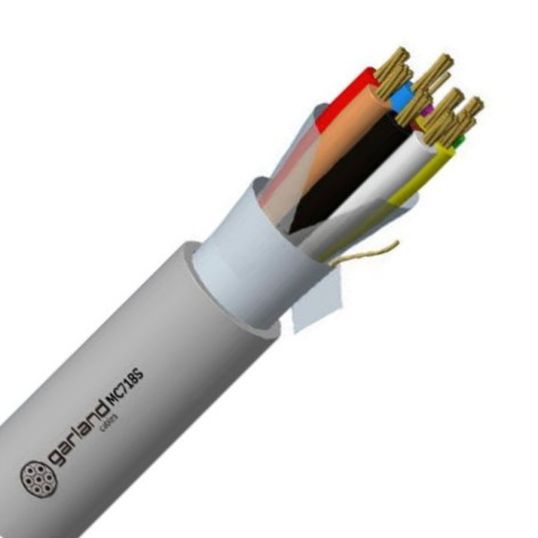

Garland Pro Series Data Cable 18 Core Overall Screened 0.22mm PVC/AL/PVC Grey

Description

Data Cable, 18 Core, Overall Screened, 0.22 mm, 24 AWG, Tinned Annealed Copper, 7/0.2 mm Strands, 8.1 mm Overall Diameter, Bend Radius: Static - 81 mm, 0.28 mm Insulation Thickness, 1 mm Sheath Thickness, 277 N Pulling Tension, Conductor Resistance: DC - 95.3 Ohm/km, Insulation Resistance: 50 MOhm/km, 100% Screen Coverage, Aluminium/Polyester Tape, PVC Insulation, PVC Sheath, Grey RAL 7046 Sheath, -15 to 70 deg C, AS/CA S008, UL758, EIA-RS232, AS 1049

Key Specifications

Barcode (EAN-13)	9329849002701
SKU	GARMC718S500
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC718S500
Bend Radius	Static 81 mm
Conductor Resistance	DC: 95.3 Ohm/km
Conductor Size	0.22 mm
Conductor Type	Tinned Annealed Copper
Insulation Resistance	50 MOhm/km
Insulation Material	PVC
Insulation Thickness	0.28 mm
Number of Cores	18 Core
Overall Diameter	8.1 mm
Pulling Tension	277 N
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	1 mm
Temperature	-15 to 70 deg C
Standards	AS/CA S008 UL758 EIA-RS232 AS 1049
Stranding	7/0.2 mm
