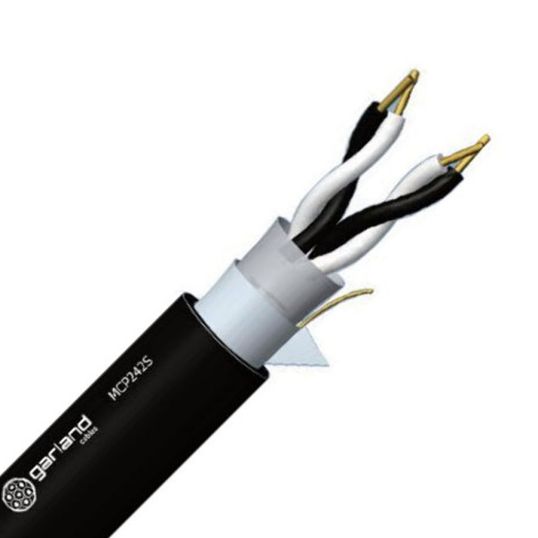

Garland 0.75mm 2 Pair Instrumentation Cable Unarmoured Overall Screened
Description
Instrumentation Cable, Unarmoured, 0.75 mm, Annealed Copper, 2 Pair, 24/0.2 mm Strands, Overall Screened Screen, 7.8 mm Overall Diameter, 78 mm Static Bend Radius, Insulation: >150% Outer Sheath: >100% Elongation, 208 N Pulling Tension, >12 MPa Tensile Strength, DC: 26.4 Ohm/km Conductor Resistance, 0.32 mm Insulation Thickness, 1 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Core, Polypropylene Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C, AS/NZS 1125 AC/CA S008 AS 1049
Key Specifications
| Barcode (EAN-13) |
9329849004422
|
|---|---|
| SKU |
GARMCP242S100
|
| Brand |
Garland
|
| Product Type |
Instrumentation Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MCP242S100 |
| Conductor Size | 0.75 mm |
| Conductor Resistance | DC: 26.4 Ohm/km |
| Conductor Type | Annealed Copper |
| Bend Radius | Static 78 mm |
| Elongation | Insulation: >150% Outer Sheath: >100% |
| Core Colours | Black/White |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.32 mm |
| Number of Pairs | 2 Pair |
| Overall Diameter | 7.8 mm |
| Pulling Tension | 208 N |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Black |
| Screen Format | Overall Screened |
| Sheath Material | PVC |
| Standards | AS/NZS 1125 AC/CA S008 AS 1049 |
| Sheath Thickness | 1 mm |
| Stranding | 24/0.2 mm |
| Tensile Strength | >12 MPa |
| Temperature | -15 to 70 deg C |
