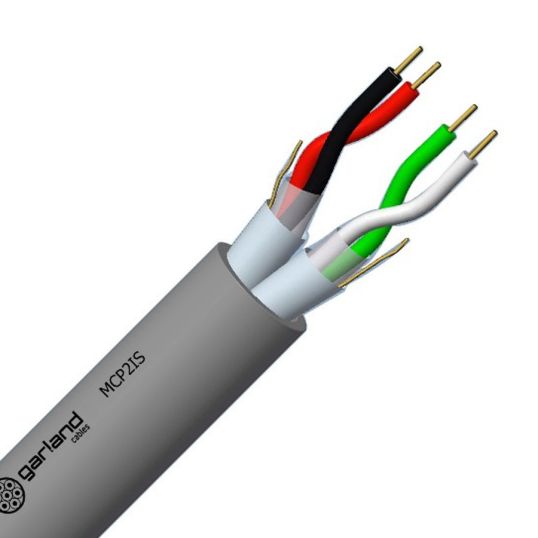

Garland 0.34mm 2 Pair Grey Security Cable Polypropylene/PVC

Description

Security Cable, 0.34 mm, Tinned Annealed Copper, 2 Pair, 7/0.25 mm Strands, Individually Screened Screen, 5 mm Overall Diameter, 50 mm Static Bend Radius, 0.2 mm Insulation Thickness, 0.5 mm Sheath Thickness, Insulation: >150% Outer Sheath: >100% Elongation, 48 N Pulling Tension, >12 MPa Tensile Strength, DC: 55.1 Ohm/km Conductor Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Polypropylene Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/ACIF S008 AS 1049

Key Specifications

Barcode (EAN-13)	9329849002961
SKU	GARMCP2IS100
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP2IS100
Conductor Resistance	DC: 55.1 Ohm/km
Bend Radius	Static 50 mm
Conductor Size	0.34 mm
Conductor Type	Tinned Annealed Copper
Elongation	Insulation: >150% Outer Sheath: >100%
Insulation Material	Polypropylene
Insulation Thickness	0.2 mm
Number of Pairs	2 Pair
Overall Diameter	5 mm
Pulling Tension	48 N
Screen Coverage	100%
Screen Format	Individually Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	0.5 mm
Standards	AS/ACIF S008 AS 1049
Stranding	7/0.25 mm
Temperature	-15 to 70 deg C
Tensile Strength	>12 MPa
