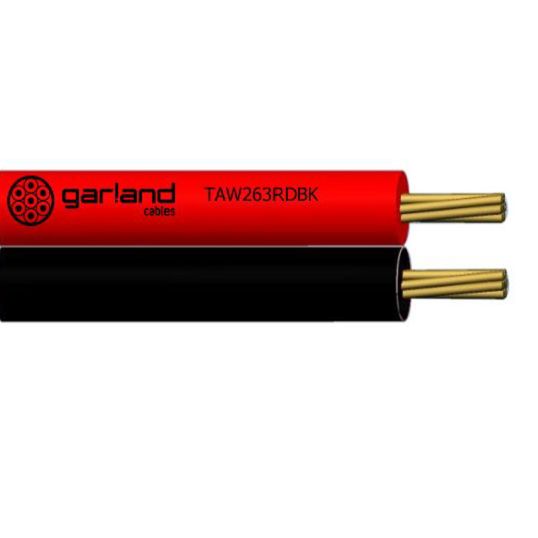

Garland 1.84mm 2 Core Red/Black Flexible Cable Figure 8 PVC/

chevron-left

Description

chevron-down
Flexible Cable, Figure 8, 1.84 mm, Bare Copper, 240 Volt, 2 Core, 26/0.3 mm Strands, 3 mm x 6.5 mm Overall Diameter, 30 mm Static Bend Radius, 0.6 mm Insulation Thickness, Insulation: >100% Elongation, 257 N Pulling Tension, DC: 10.5 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, Red/Black Sheath, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

chevron-down
Barcode (EAN-13)
9329849003333
SKU
GARTAW263RDBK100
Brand
Garland
Product Type
Flexible Cable Figure 8

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product TAW263RDBK100
Bend Radius Static 30 mm
Conductor Resistance 10.5 Ohm/km
Conductor Size 1.84 mm
Conductor Type Bare Copper
Elongation Insulation: >100%
Insulation Material PVC
Insulation Resistance 50 MOhm/km
Insulation Thickness 0.6 mm
Number of Cores 2 Core
Overall Diameter 3 mm x 6.5 mm
Pulling Tension 257 N
Sheath Colour Red/Black
Standards AS/NZS 1125 AS/NZS 3808
Stranding 26/0.3 mm
Temperature -15 to 70 deg C
Voltage 240 Volt
