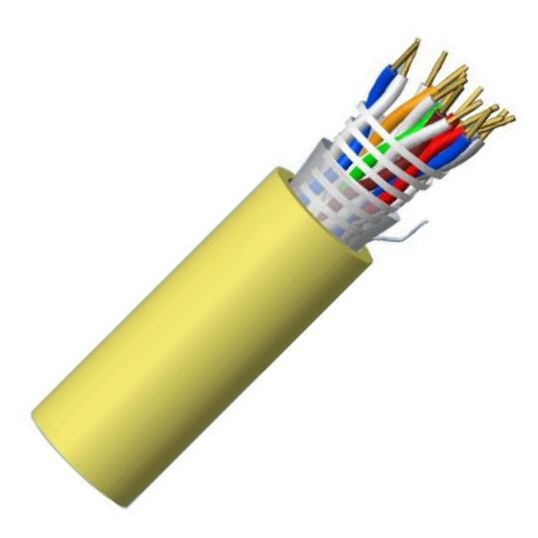

Garland Pro Series Internal Telephone & Lan Cable Unscreened 0.5mm 50 Pair Polyethylene/LSZH Pantone Yellow

$Garland\Garland_UTPL3xxxHF.jpg$

Description

Telephone and LAN Cable Internal, 24 AWG, 0.5 mm Conductor Diameter, 93.8 Ohm/km Conductor Resistance, 1000 MOhm/km Insulation Resistance, 0.2 mm Insulation Thickness, 0.8 mm Sheath Thickness, 1/0.5 mm Strands, 170 mm Bend Radius, 50 Pair, 1370 N Max. Pulling Force, Annealed Copper Conductor, Polyethylene Insulation, LSZH Sheath, Yellow Sheath, 15 to 70 deg C, 17.5 mm Outside Diameter

Key Specifications

SKU	GARUTPL350HF1000
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1000
UNSPSC Class	26121600
UOM	MTR
Vendor Product	UTPL350HF1000
Bend Radius	170 mm
Conductor Diameter	0.5 mm
Conductor Material	Annealed Copper
Conductor Size	24 AWG
Conductor Resistance	93.8 Ohm/km
Insulation Material	Polyethylene
Insulation Resistance	1000 MOhm/km
Insulation Thickness	0.2 mm
Pair Count	50 Pair
Max. Pulling Force	1370 N
Outside Diameter	17.5 mm
Sheath Colour	Yellow
Sheath Material	LSZH
Stranding	1/0.5 mm
Sheath Thickness	0.8 mm
Temperature	15 to 70 deg C
