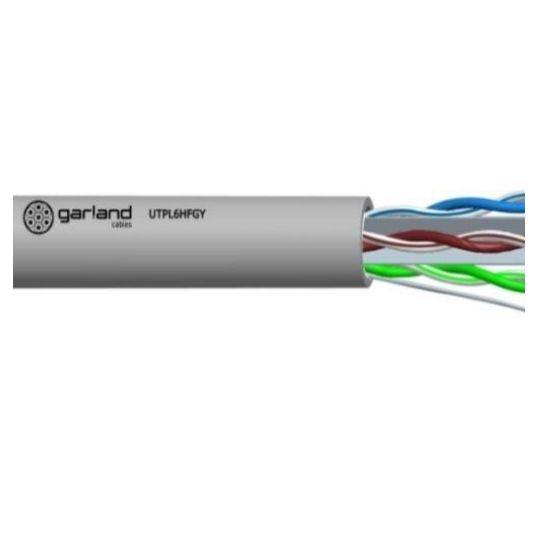

Garland Pro Series UTP Data Cable Cat6A 4 Pair 23AWG Polyethylene/LSZH Grey 305M
Description
UTP Data Cable Cat6A 4 Pair, 23 AWG, 0.56mm Conductor Diameter, ? 7.32 Ohm/100 mtr at 20 deg C Conductor Resistance, Stranding: Solid, Bend Radius: Static: 65mm, 126 N Max. Pulling Force, Twinned 4 Pair Pair, Cat6A UTP Cable, PACW Conductor, PE Insulation, 75C Rated LSZH Sheath, Grey Sheath,-15 to 75 deg C, 305 mtr Length, 7.2mm Outside Diameter
Key Specifications
| Barcode (EAN-13) |
9329849021511
|
|---|---|
| SKU |
GARUTPL6AHFGY305
|
| Brand |
Garland
|
| Product Type |
Cat6A Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 305 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | UTPL6AHFGY305-NLA |
| Cable Type | Cat6A UTP |
| Bend Radius | Static: 65mm |
| Conductor Diameter | 0.56mm |
| Conductor Resistance | ? 7.32 Ohm/100 mtr at 20 deg C |
| Conductor Size | 23 AWG |
| Conductor Material | PACW |
| Insulation Material | PE Compound |
| Max. Pulling Force | 126 N |
| Pair Count | Twinned 4 Pair |
| Outside Diameter | 7.2mm |
| Sheath Colour | Grey |
| Sheath Material | 75C Rated LSZH |
| Stranding | Solid |
| Temperature | -15 to 75 deg C |
