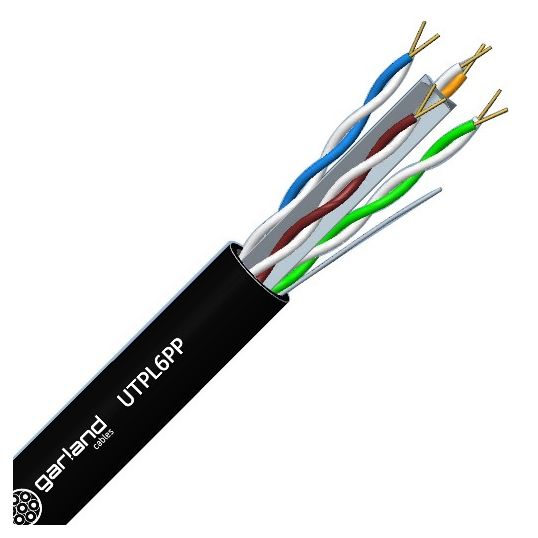

Garland Pro Series UTP Data Cable Cat6 4 Pair 23AWG Polyethylene/Polyethylene Black 500M

$Garland\Garland_UTPL6PP.jpg$

Description

UTP Data Cable Cat6 4 Pair, 23 AWG/0.255 mm, 0.57mm Conductor Diameter, 7.316 Ohm/km at 20 deg C Conductor Resistance, Stranding: 1/0.57mm, Bend Radius: Static: 62mm, 142 N Max. Pulling Force, 4 Pair, Cat6 UTP Cable, PACW Conductor, Cross-Web Separator , Rip Cord Filler, PE Insulation, PE ( UV Stabilized) Sheath, Black(RAL 9004) Sheath, 30 to 70 deg C, 500 mtr Length, 6.2mm Outside Diameter

Key Specifications

SKU	GARUTPL6PP500
Brand	Garland
Product Type	Cat6 Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	UTPL6PP500
Bend Radius	Static: 62mm
Cable Type	Cat6 UTP
Conductor Resistance	7.316 Ohm/km at 20 deg C
Conductor Material	PACW
Conductor Diameter	0.57mm
Conductor Size	23 AWG/0.255 mm
Insulation Material	PE Compound
Filler Material	Cross-Web Separator/Rip Cord
Max. Pulling Force	142 N
Outside Diameter	6.2mm
Pair Count	4 Pair
Sheath Material	PE Compound
Sheath Colour	Black
Stranding	1/0.57mm
Temperature	30 to 70 deg C
