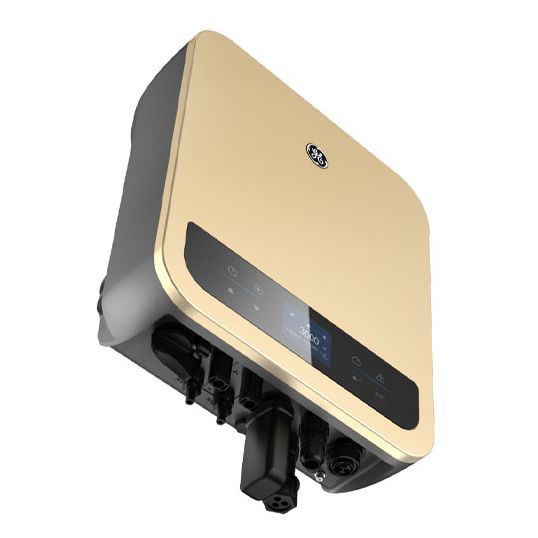

GE Solar Inverter 2 MPPT Single Phase 5kW Wi-Fi/RS485/LAN

$GE\GE_GEP3-5KW.jpg$ $GE\GE_GEP3-5KW.jpg$

Description

Solar Inverter Dual MPPT, 1 Phase, 7500 Watt Input, 600 Volt DC Input, 80-600 Volt DC Operating, 360 Volt DC Nominal, 80-550 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 13 Amp Max. Input, 2 MPPTs, 5 kW Output, 4999 VA Max. Apparent, 230 Volt AC Nominal, 50 Hz, 21.7 Amp Output, 1, Adjustable From 0.8 Leading to 0.8 Lagging Power Factor, <3% Harmonic Distortion, 98.3% Efficiency, Transformerless, <= 4000 mtr Max. Altitude, Wi-Fi/RS485/LAN, LCD & LED Display, Natural Convection Cooling, IP65, -25 to 60 deg C, 0-100% Relative Humidity, 336 mm Width ? 400 mm Height ? 124 mm Depth, 11 kg Weight

Key Specifications

SKU	GDWGEP5.0-1-10
Brand	GE
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Inbuilt DC isolator Inbuilt export control 13 Amp/String Plug & play Elegant Aesthetic Design Superior efficiency
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GEP5.0-1-10
AC Max. Apparent Power	4999 VA
AC Nominal Voltage	230 Volt
AC Operating Frequency	50 Hz
AC Output Current	21.7 Amp
AC Output Power	5 kW
Communication Port	Wi-Fi/RS485/LAN
Cooling Method	Convection
DC Input Power	7500 Watt
DC Input Voltage	600 Volt
DC Max. Input Current	13 Amp
DC MPPT Voltage Range	80-550 Volt
DC Operating Voltage	80-600 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	80 Volt
Depth	124 mm
Display Type	LCD & LED
Efficiency	98.30%
European Weighted Efficiency	97.80%
IP Rating	IP65
Height	400 mm
Item Weight	11 kg
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1/Adjustable from 0.8 Leading to 0.8 Lagging
Relative Humidity	0-100%
Topology	Transformerless
Width	336 mm
