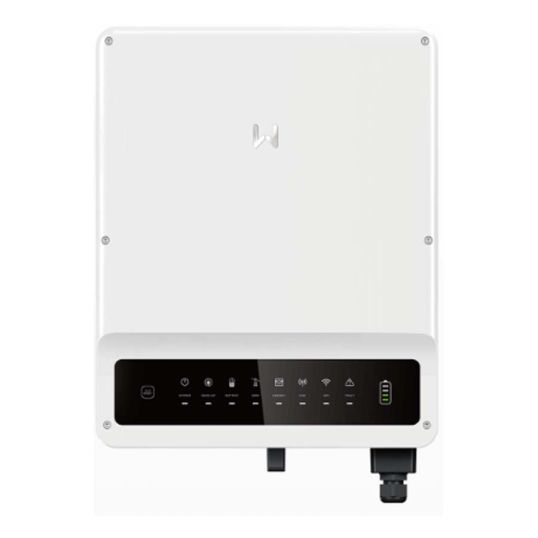

Goodwe ET Series Solar Inverter 2 MPPT Three Phase 10kW RS485/WIFI/CAN Energy Storage Hybrid High Voltage Battery
Description
Solar Inverter Dual MPPT, 3 Phase Phase, 13300 Watt DC Input, 1000 Volt DC Input, 620 Volt DC Nominal, 200-850 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 12.5-22 Amp DC Max. Input, 2 MPPTs, On-Grid 10 kW AC Output, On-Grid 11000 VA/Backup 10000 VA AC Max. Apparent, 400-380 Volt 3L/N/PE, 50/60 Hz, On-Grid 16.5 Amp/Backup 16.5 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, 0.976 Efficiency, 0.968 European Weighted Efficiency, Transformerless, Battery: Lithium-Ion, RS485/CAN/Wi-Fi, LED Display, Natural Convection Cooling, <30 dB, Wall Mounting, IP66, -35 to 60 deg C
Key Specifications
| SKU |
GDWGW10KL-ET
|
|---|---|
| Brand |
Goodwe
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | GW10KL-ET |
| AC Max. Apparent Power | On-Grid 11000 VA/Backup 10000 VA |
| AC Nominal Voltage | 400-380 Volt 3L/N/PE |
| AC Operating Frequency | 50/60 Hz |
| AC Output Current | On-Grid 16.5 Amp/Backup 16.5 Amp |
| AC Output Power | On-Grid 10 kW |
| Battery | Lithium-Ion |
| Communication Port | RS485/CAN/Wi-Fi |
| Cooling Method | Natural Convection |
| DC Input Power | 13300 Watt |
| DC Input Voltage | 1000 Volt |
| DC Max. Input Current | 12.5-22 Amp |
| DC MPPT Voltage Range | 200-850 Volt |
| DC Nominal Voltage | 620 Volt |
| DC Start-up Voltage | 180 Volt |
| Depth | 180 mm |
| Display Type | LED |
| Efficiency | 0.976 |
| European Weighted Efficiency | 0.968 |
| IP Rating | IP66 |
| Height | 516 mm |
| Mounting Method | Wall |
| Noise Level | <30 dB |
| Number of MPPTs | 2 |
| Operating Temperature | -35 to 60 deg C |
| Phase | 3 Phase |
| Power Factor | 1 (Adjustable 0.8 Leading-0.8 Lagging) |
| Relative Humidity | 0-95% |
| Topology | Transformerless |
| Width | 415 mm |
