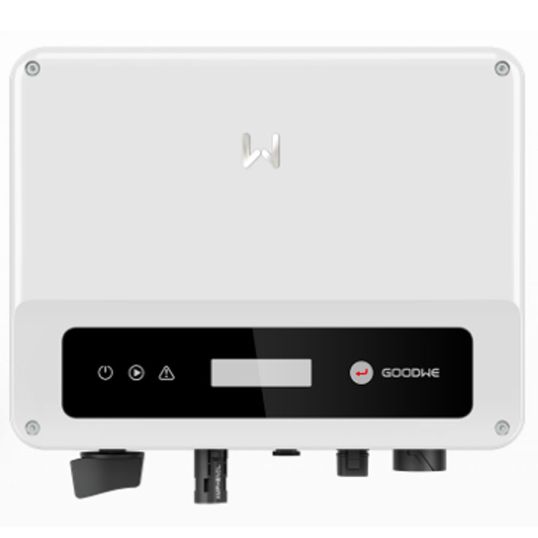

Goodwe XS Series Solar Inverter 2000W 1 MPPT 1 Phase 500V WIFI/LAN
Description
Solar Inverter, 1 Phase, 2600 Watt DC Input, 500 Volt DC Input, 360 Volt DC Nominal, 50-450 Volt DC MPPT Voltage Range, 50 Volt DC Start-up, 12.5 Amp DC Max. Input, 1 MPPTs, 2000 Watt AC Output, 2000 VA AC Max. Apparent, 230 Volt, 50/60 Hz, 9.6 Amp AC Output, 1 (Adjustable from 0.8 Leading to 0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 97.5% Efficiency, 97% European Weighted Efficiency, Non-Isolated, 3000 mtr Max. Altitude, Integrated DC Switch, Wi-Fi, LAN or RS485 (Optional), Natural Convection Cooling, < 25 dB, DC: MC4, AC: Plug and Play Connection, IP65,-25 to 60 deg C, 0-100% Relative Humidity, 230mm Height, 295mm Width, 113mm Depth, 5.8 kg
Key Specifications
| SKU |
GDWGW2000-XS-11
|
|---|---|
| Brand |
Goodwe
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | GW2000-XS-11-NLA |
| AC Max. Apparent Power | 2000 VA |
| AC Nominal Voltage | 230 Volt |
| AC Operating Frequency | 50/60 Hz |
| AC Output Current | 9.6 Amp |
| AC Output Power | 2000 Watt |
| Communication Port | Wi-Fi/LAN or RS485 (Optional) |
| Connection Type | DC: MC4/AC: Plug and Play |
| Cooling Method | Natural Convection |
| DC Input Power | 2600 Watt |
| DC Input Voltage | 500 Volt |
| DC Max. Input Current | 12.5 Amp |
| DC MPPT Voltage Range | 50-450 Volt |
| DC Nominal Voltage | 360 Volt |
| DC Start-up Voltage | 50 Volt |
| DC Switch | Integrated |
| Depth | 113 mm |
| Efficiency | 97.5% |
| European Weighted Efficiency | 97% |
| IP Rating | IP65 |
| Height | 230 mm |
| Item Weight | 5.8 kg |
| Max. Operating Altitude | 3000 mtr |
| Noise Level | < 25 dB |
| Number of MPPTs | 1 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 1 Phase |
| Power Factor | 1 (Adjustable from 0.8 Leading to 0.8 Lagging) |
| Relative Humidity | 0-100% |
| Topology | Non-Isolated |
| Total Harmonic Distortion | <3% |
| Width | 295 mm |
