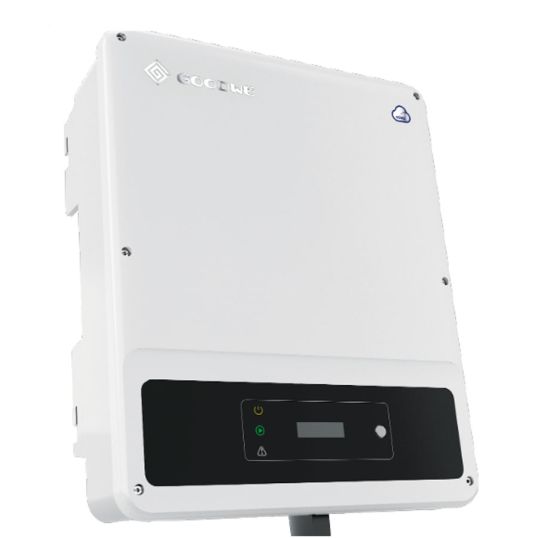

Goodwe DNS Solar Inverter 2 MPPT 1 Phase 3000W 13/13A
Description
Solar Inverter, 1 Phase, 4000 Watt DC Input, 600 Volt DC Input, 360 Volt DC Nominal, 80-550 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 13/13 Amp DC Max. Input, 2 MPPTs, 3000 Watt AC Output, 3000 VA AC Max. Apparent, 220/230 Volt AC Nominal, 50/60 Hz AC Operating, 13.6 Amp AC Output, 1 (Adjustable 0.8 Leading - 0.8 Lagging) Power Factor, <3% Harmonic Distortion, 97.8% Efficiency, 97.5% European Weighted Efficiency, Transformerless, <=4000 mtr Max. Altitude, RS485, Wi-Fi, 4G, 2G, LAN Communication Port, LED/LCD/Wi-Fi+APP/Bluetooth+APP Display, Natural Convection Cooling, IP65, -25 to 60 deg C, 0-100% Relative Humidity, 433 mm Height, 354 mm Width, 147 mm Depth, 13 kg
Key Specifications
| SKU |
GDWGW3000T-DS
|
|---|---|
| Brand |
Goodwe
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | GW3000T-DS |
| AC Max. Apparent Power | 3000 VA |
| AC Nominal Voltage | 220-230 Volt |
| AC Operating Frequency | 50/60 Hz |
| AC Output Current | 13.6 Amp |
| AC Output Power | 3 kW |
| Communication Port | RS485/Wi-Fi/4G/2G/LAN |
| Cooling Method | Natural Convection |
| DC Input Power | 4000 Watt |
| DC Input Voltage | 600 Volt |
| DC Max. Input Current | 13 Amp |
| DC MPPT Voltage Range | 80-550 Volt |
| DC Nominal Voltage | 360 Volt |
| DC Start-up Voltage | 80 Volt |
| Depth | 147 mm |
| Display Type | LED/LCD/Wi-Fi+APP/Bluetooth+APP |
| Efficiency | 97.80% |
| European Weighted Efficiency | 97.50% |
| IP Rating | IP65 |
| Height | 433 mm |
| Max. Operating Altitude | <=4000 mtr |
| Number of MPPTs | 2 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 1 Phase |
| Power Factor | 1 (Adjustable 0.8 Leading - 0.8 Lagging) |
| Relative Humidity | 0-100% |
| Topology | Transformerless |
| Total Harmonic Distortion | <3% |
| Width | 354 mm |
