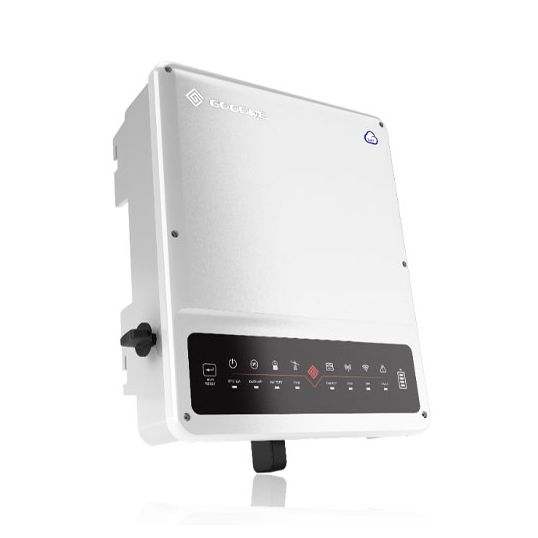

Goodwe EH Series Solar Inverter 2 MPPT Single Phase 5kW RS485/CAN/Wi-Fi/Ethernet Hybrid High Voltage Battery

$Goodwe\Goodwe_GW5000EHGRID-TIED.jpg$

Description

Solar Inverter Dual MPPT, 1 Phase Phase, 6650 Watt DC Input, 580 Volt DC Input, 380 Volt DC Nominal, 100-550 Volt DC MPPT Voltage Range, 90 Volt DC Start-up, 12.5 Amp DC Max. Input, 2 MPPTs, On-Grid 5 kW AC Output, On-Grid 5000-5500 VA/Backup 5000 VA AC Max. Apparent, 230 Volt, 50/60 Hz, On-Grid 21.7-24 Amp/Backup 21.7 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, 0.976 Efficiency, 0.97 European Weighted Efficiency, 0.999 MPPT Efficiency, Battery Non-Isolation, Battery: Lithium-Ion, RS485/CAN/Wi-Fi/Ethernet, LED Display, Natural Convection Cooling, <35 dB, Wall Mounting, IP65, -35 to 60 deg C

Key Specifications

SKU	GDWGW5000EHGRID-TIED
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	12
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW5000EHGRID-TIED
AC Max. Apparent Power	On-Grid 5000-5500 VA/Backup 5000 VA
AC Nominal Voltage	230 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	On-Grid 21.7-24 Amp/Backup 21.7 Amp
AC Output Power	On-Grid 5 kW
Battery	Lithium-Ion
DC Input Power	6650 Watt
Communication Port	RS485/CAN/Wi-Fi/Ethernet
Cooling Method	Natural Convection
DC Input Voltage	580 Volt
DC MPPT Voltage Range	100-550 Volt
DC Max. Input Current	12.5 Amp
DC Start-up Voltage	90 Volt
DC Nominal Voltage	380 Volt
Depth	147 mm
Display Type	LED
Efficiency	0.976
European Weighted Efficiency	0.97
Height	433 mm
IP Rating	IP65
Mounting Method	Wall
Noise Level	<35 dB
MPPT Efficiency	0.999
Operating Temperature	-35 to 60 deg C
Number of MPPTs	2
Phase	1 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Relative Humidity	0-95%
Topology	Battery Non-Isolation
Width	354 mm
