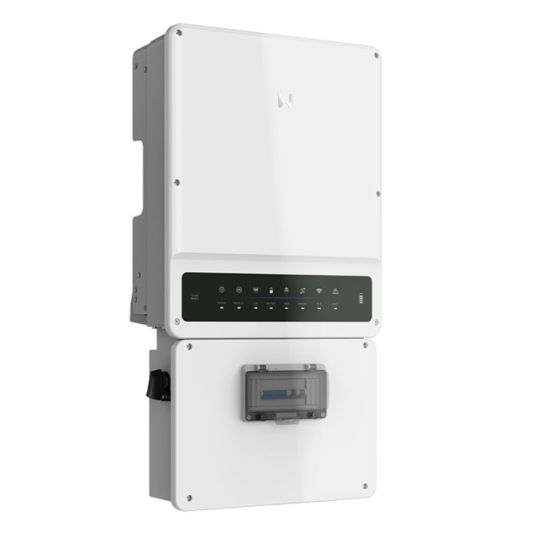

Goodwe Hybrid Inverter 4 MPPTs 1Ph 20000W 9990W/9990W Back-up 16A 43.4A On-Grid/50A Back-up IP65 600V 380V 80-550V 95V

$Goodwe\Goodwe_GW9.99K-EHB-AU-G11.JPG$

Description

The EHB Series is a single-phase hybrid inverter designed to address the growing energy storage needs of the residential sector. Its plug-and-play, and lightweight design makes installation quick and easy. It also offers an integrated bypass feature for added reliability. The backup function is ideal for both new installations and retrofit projects, and can even be integrated into a micro-grid system, ensuring the normal operation of on-grid systems during blackouts.

Key Specifications

SKU	GDWGW9.99K-EHB-AUG11
Brand	Goodwe
Product Type	Hybrid Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High power generation Smart control for smart energy Superb safety and reliability Friendly and thoughtful design
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW9.99K-EHB-AU-G11
AC Max. Apparent Power	9990 VA
AC Nominal Voltage	230 Volt
AC Operating Frequency	50 Hz
AC Output Power	9990 Watt On-Grid / 9990 Watt Back-up
AC Output Current	43.4 Amp On-Grid / 50 Amp Back-up
Battery	350 Volt Lithium-ion
Communication Port	RS485 / CAN / Wi-Fi / LAN / 4G
Cooling Method	Smart Fan Cooling
DC Input Power	20000 Watt
DC Max. Input Current	16 Amp
DC Input Voltage	600 Volt
DC MPPT Voltage Range	80-550 Volt
DC Nominal Voltage	380 Volt
DC Start-up Voltage	95 Volt
DC Switch	Integrated
Depth	180 mm
Efficiency	97.60%
Height	791 mm
IP Rating	IP65
European Weighted Efficiency	97%
Max. Operating Altitude	4000 mtr
Mounting Method	Wall
MPPT Efficiency	99.90%
Number of MPPTs	4
Operating Temperature	-30 to 60 deg C
Phase	1 Phase
Power Factor	-1 (Adjustable from 0.8 Leading-0.8 Lagging)
Relative Humidity	0-95%
Topology	Non-Isolated
Total Harmonic Distortion	<3%
Width	415 mm
