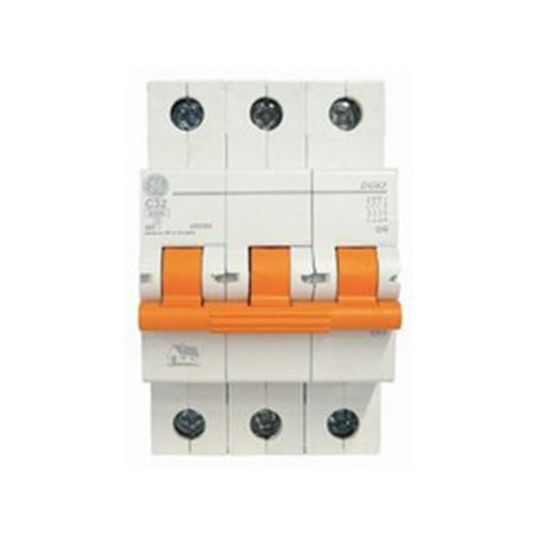

GE Miniature Circuit Breaker C Curve 20Amp 6 kA 3Pole 3Module 54mm DIN Rail
Description
Miniature Circuit Breaker C Curve C Curve, 400 Volt AC, 20 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, Number of Modules: 3, 54mm Module Width, Number of Poles: 3, Trip Characteristic: C Curve, 4.5 N/m Tightening Torque, 0.75-25 mm Terminal Capacity, IP20, 10000 Cycles, DIN Rail,-25 to 55 deg C, 86mm Height x 18mm Width x 68mm Depth
Key Specifications
| Barcode (EAN-13) |
5413656905806
|
|---|---|
| SKU |
GECDG63C20
|
| Brand |
GE
|
| Range Name |
Contractor Range
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DG63C20 |
| Current | 20 Amp |
| Depth | 68mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Height | 86mm |
| Interrupt Capacity | 6 kA |
| IP Rating | IP20 |
| Modules | 3 Module 54mm |
| Mounting Method | DIN Rail |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 55 deg C |
| Tightening Torque | 4.5 N/m |
| Voltage | 400 Volt |
| Width | 18mm |
