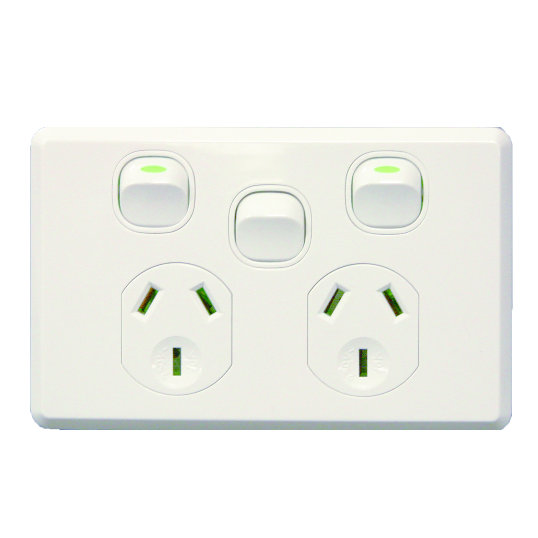

GSME Double Power Point Flush Mount Standard 10A 250V 1 Extra Switch Horizontal White

$GSME\GSME_CHPPSW2G.png$

Description

GPO Switched Outlet Flush Mount Standard, 10 Amp, 250 Volt, 2 Gang, Horizontal, Mounting Centres: 84 mm, Flush Mount, Terminal Capacity: 4 x 2.5 mm, Rocker/Button, Screw Connection, UV-Stabilized Polycarbonate, White, 72.7 mm Height, 114.8 mm Width, 33.5 mm Depth

Key Specifications

Barcode (EAN-13)	9349703003453
SKU	GSMCHPPSW2G
Brand	GSME Trader
Range Name	Cheetah
Product Type	GPO Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	With extra switch Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Power point terminals have 6 mm bore to suit 4 x 2.5 sq-mm cable Combination head screws for the socket terminals Uses cat flap screw covers for IP rated mounting screws Dolly indicator colour green Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
Standard Pack Size	5
UNSPSC Class	39122200
UOM	EA
Vendor Product	CHPPSW2G-NLA
Colour	White
Actuator Type	Rocker/Button
Connection Type	Screw
Current	10 Amp
Depth	33.5 mm
Height	72.7 mm
Material	UV-Stabilized Polycarbonate
Mounting Centres	84 mm
Mounting Method	Flush
Number Of Gangs	2 Gang
Orientation	Horizontal
Terminal Capacity	4 x 2.5 sq-mm
Voltage	250 Volt
Width	114.8 mm
