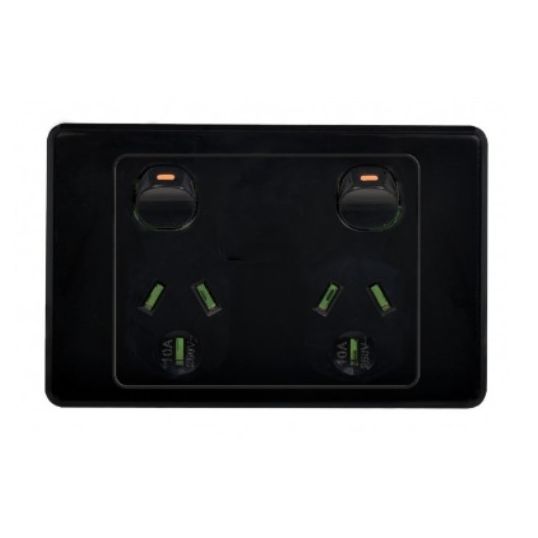

GSME Double Power Point Flush Mount Standard 10A 250V Horizontal Black

chevron-left

Description

chevron-down
GPO Switched Outlet, 250 Volt Switch, 10 Amp, 2 Pin Flat, 2 Gang, Horizontal Orientation, Flush Mounting, 84 mm Mounting Centres, Screw Connection, Rocker Switch/Button Actuator, 4 x 2.5 sq-mm Terminal Capacity, UV Stabilised Polycarbonate, Black, 74 mm Height, 117 mm Width, 30.5 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9346051002947
SKU
GSMCOPP2GBK
Brand
GSME Trader
Range Name
Cougar
Product Type
GPO Standard

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Uses brass tunnel terminals that have the screws backed out for easier installation of cabling
  • Power point terminals have 5.7 mm bore to suit 4 x 2.5 sq-mm cable
  • Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres
  • Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
  • Switch has combination head screws for terminals
Standard Pack Size 10
UNSPSC Class 39122200
UOM EA
Vendor Product COPP2GBK
Connection Type Screw
Actuator Type Rocker Switch/Button
Colour Black
Current 10 Amp
Depth 30.5 mm
Height 74 mm
Material UV Stabilised Polycarbonate
Mounting Centres 84 mm
Mounting Method Flush
Number Of Gangs 2 Gang
Orientation Horizontal
Pin Configuration 2 Pin Flat
Terminal Capacity 4 x 2.5 sq-mm
Width 117 mm
