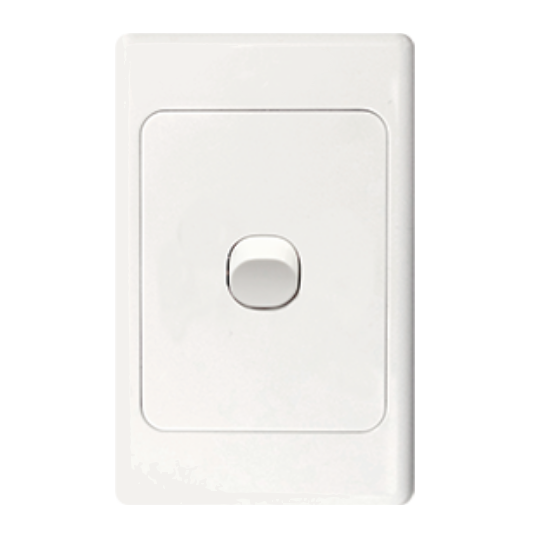

GSME Switch Plate Flush Mount Standard 1 Gang 16A/10AX 250V Vertical White

$GSME\GSME_COSWV1G.png$

Description

Switch Plate, 250 Volt Switch, 16 Amp/10 Amp AX, 1 Gang, 2 Way, Screw Connection, Brass Tunnel Terminal, 3 x 1.5 sq-mm Terminal Capacity, Vertical Orientation, Wall Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, 117 mm Height, 74 mm Width, 25.8 mm Depth

Key Specifications

Barcode (EAN-13)	9346051002695
SKU	GSMCOSWV1G
Brand	GSME Trader
Range Name	Cougar

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Switches are rated 10AX/16 Amp 250 Volt to and approved to AS/NZS3133 Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Switches are 2 way with looping terminal and suit 3 x 1.5 sq-mm cabling with 4.1 mm bore Switches are 2 way with looping terminal and suit 3 x 1.5 sq-mm cabling with 4.1 mm bore Switch has combination head screws for terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
Standard Pack Size	10
UNSPSC Class	39122200
UOM	EA
Vendor Product	COSWV1G
Colour	White
Connection Type	Screw
Material	UV Stabilised Polycarbonate
Orientation	Vertical
Height	117 mm
Mounting Centres	84 mm
Width	74 mm
Current	16 Amp/10 Amp AX
Depth	25.8 mm
Number Of Gangs	1 Gang
Number Of Ways	2 Way
Terminal Capacity	3 x 1.5 sq-mm
Terminal Type	Brass Tunnel
Mounting Method	Wall
Voltage	250 Volt Switch
