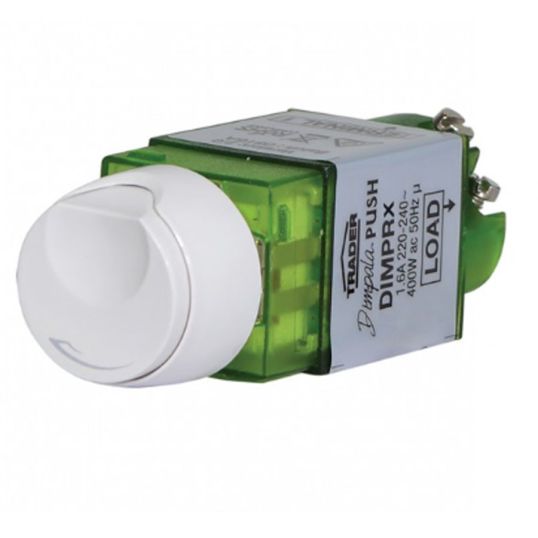

GSME Light Dimmer Mechanism Rotary Push Button 220/240V 400W LED Indicator No Glow White

$GSME\GSME_DIMPRX.jpg$

Description

Light Dimmer Mechanism Rotary Pushbutton, 220-240 Volt, 400 Watt, 50 Hz, For Use With LED/Incandescent and 12 Volt Dichroic Lamps, 2 Wire, Push Rotary Control, Polycarbonate, White, 45 mm Length, 22.7 mm Width, 21.6 mm Depth

Key Specifications

Barcode (EAN-13)	9349703013865
SKU	GSMDIMPRX
Brand	GSME Trader
Range Name	Dimpala

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	220-240 VAC/50 Hz/2 Watt Min/400 Watt Max/<1% to > 95% (load dependent) Suitable for LED, incandescent and 12 V dichroic lamps Minimum dimming level, typically almost 0% Push switch configuration with terminals similar to a standard switch for easy wiring Integrated switch replaces the need for an additional control switch Soft start for improved lamp and driver life
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	DIMPRX
Colour	White
Control Type	Push Rotary
Depth	21.6 mm
For Use With	LED/Incandescent and 12 Volt Dichroic Lamps
Frequency	50 Hz
Material	Polycarbonate
Number of Wires	2 Wire
Voltage	220-240 Volt
Width	22.7 mm
Wattage	400 Watt
