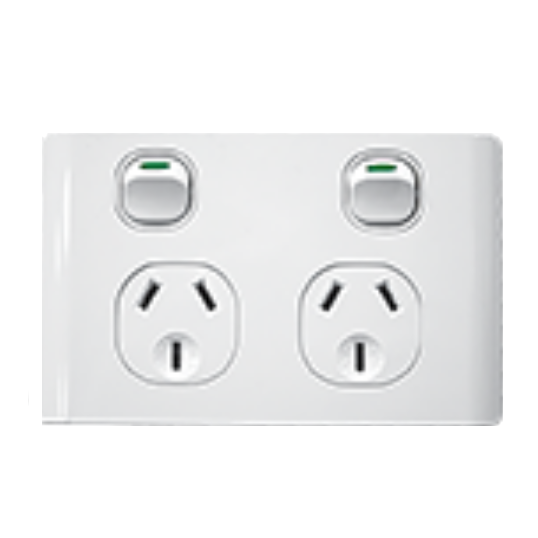

GSME Double Power Point Flush Mount Standard 10A 250V Horizontal White

$GSME\GSME_LEPP2G.png$

Description

GPO Standard, 250 Volt Switch, 10 Amp, 2 Pin Flat, 2 Gang, Horizontal Orientation, Flush Mounting, 84 mm Mounting Centres, Screw Connection, Rocker Switch/Button Actuator, 4 x 2.5 sq-mm Terminal Capacity, UV Stabilised Polycarbonate, White, Glossy, 72.7 mm Height, 114.8 mm Width, 25.1 mm Depth

Key Specifications

Barcode (EAN-13)	9346051002688
SKU	GSMLEPP2G
Brand	GSME Trader
Range Name	Leopard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Power point terminals have 6 mm bore to suit 4 x 2.5 sq-mm cable Combination head screws for the socket terminals Uses cat flap screw covers for IP rated mounting screws Dolly indicator colour green Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
Standard Pack Size	10
UNSPSC Class	39122200
UOM	EA
Vendor Product	LEPP2G
Colour	White
Actuator Type	Rocker Switch/Button
Connection Type	Screw
Current	10 Amp
Depth	25.1 mm
Finish	Gloss
Height	72.7 mm
Material	UV Stabilised Polycarbonate
Mounting Centres	84 mm
Mounting Method	Flush
Number Of Gangs	2 Gang
Orientation	Horizontal
Pin Configuration	2 Pin Flat
Terminal Capacity	4 x 2.5 sq-mm
Voltage	250 Volt Switch
Width	114.8 mm
