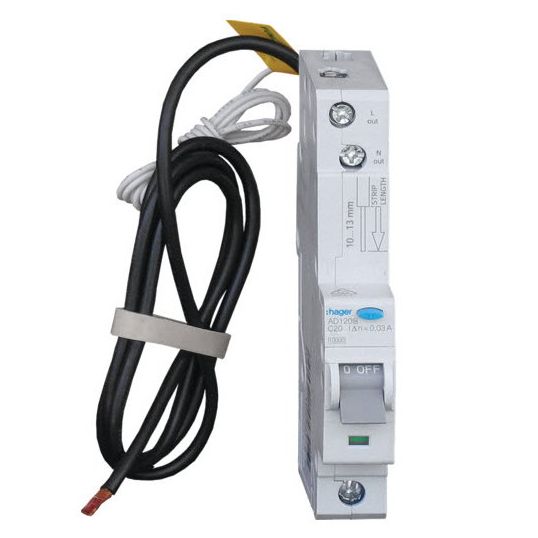

Hager Combination RCD Circuit Breaker RCBO 1Pole 20 Amp 230/240V 10 kA 1Module 18mm DIN Rail
Description
Combination RCD Circuit Breaker RCBO, 20 Amp, 230/240 Volt, 50 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 30 mA, Magnetic Rating: 5/10 In, Number of Poles: 1, Number of Modules: 1, 18mm Module Width, Trip Characteristic: C Curve, 1-16 mm Flexible/1-25 mm Rigid Terminal Connection, Screw, IP20, DIN Rail, 115mm Height, 17.5mm Width, 70mm Depth
Key Specifications
| Barcode (EAN-13) |
3250611068594
|
|---|---|
| SKU |
HAGAD120B
|
| Brand |
Hager
|
| Product Type |
Combination RCBO
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | AD120B-NLA |
| Current | 20 Amp |
| Connection Type | Screw |
| Height | 115 mm |
| Depth | 70 mm |
| Modules | 1 Module 18 mm |
| Frequency | 50 Hz |
| Interrupt Capacity | 10 kA |
| Mounting Method | DIN Rail |
| IP Rating | IP20 |
| Number Of Poles | 1 Pole |
| Trip Characteristic | C Curve |
| Terminal Connection | 1-16 sq-mm Flexible / 1-25 sq-mm Rigid |
| Trip Sensitivity | 30 mA |
| Voltage | 230-240 Volt |
| Width | 17.5 mm |
