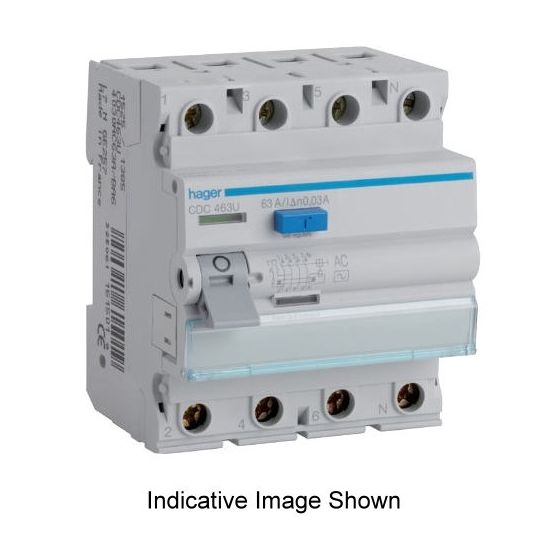

Hager Safety Switch RCCB Type A 4Pole 40A 230/400V 6kA 30mA 4Module 70mm DIN Rail Mount

chevron-left

Description

chevron-down
Residual Current Circuit Breaker Type A, 230-400 Volt, 40 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 4 Module 70 mm, 4 Pole, Screw Terminal, IP20, DIN Rail Mounting, 2000 Cycles Electrical Life, 4000 Cycles Mechanical Durability, 1/16 sq-mm Flexible/1/25 sq-mm Rigid, 2.8 Nm Tightening Torque, 25 to 40 deg C, 83 mm Height, 70 mm Width, 70 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
3250611615507
SKU
HAGCDA440T
Brand
Hager
Range Name
onekombo
Product Type
Safety Switches RCCB

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product CDA440T
Depth 70 mm
Current 40 Amp
Conductor Size 1-16 sq-mm Flexible - 1-25 sq-mm Rigid
Frequency 50 Hz
Electrical Life 2000 Cycles
Height 83 mm
Interrupt Capacity 6 kA
IP Rating IP20
Mechanical Durability 4000 Cycles
Modules 4 Module 70 mm
Mounting Method DIN Rail
Number Of Poles 4 Pole
Temperature 25 to 40 deg C
Terminal Type Screw
Tightening Torque 2.8 Nm
Trip Sensitivity 30 mA
Voltage 230-400 Volt
Width 70 mm
