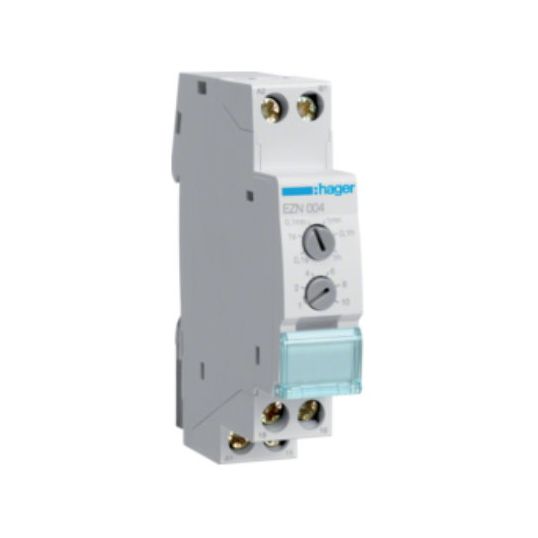

Hager Time Delay Relay Analogue DIN Rail Mount 1CO (Usable as NC or NO) Timer/Pulse Shaping 0.1s-10Hr 12-48VDC/12-230V

Description

Time Delay Relay Analogue, 12-48 Volt DC/12-230 Volt AC, 5 Amp, 15 VA, 1CO (Usable as NC or NO), Timing Function: Timer/Pulse Shaping, Timing Range: 0.1 sec-10 hr, 1-6 mm Rigid, 1.5-10 mm Flexible, Screw Terminal, DIN Rail Mount, IP40, -20 to 50 deg C, 85 mm Height, 17.5 mm Width, 58 mm Depth

Key Specifications

Barcode (EAN-13)	3250612469963
SKU	HAGEZN004
Brand	Hager
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	EZN004-NLA
Contact Configuration	1 Changeover
Conductor Size	1-6 sq-mm Rigid/1.5-10 sq-mm Flexible
Depth	58 mm
Current	5 Amp
Height	85 mm
IP Rating	IP40
Mounting Method	DIN Rail
Power Rating	15 VA
Temperature	-20 to 50 deg C
Terminal Connection	Screw
Timing Function	Timer/Pulse Shaping
Timing Range	0.1 Second-10 Hours
Voltage	12-230 Volt AC/12-48 Volt DC
Width	17.5 mm
