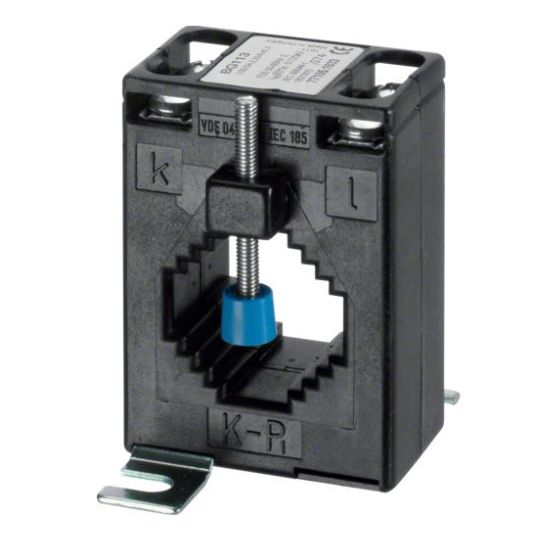

Hager Current Transformer For Cable & Busbars Primary 400A / Secondary 5A
Description
Current Transformer For Cable & Busbars, Primary 400 Amp/Secondary 5 Amp, Output: 5 VA, 50/60 Hz, For Use With: Cable and Busbars, IP10, DIN Rail Mount, -40 to 40 deg C, 70 mm Height x 50 mm Width x 30 mm Depth
Key Specifications
| Barcode (EAN-13) |
4049857139361
|
|---|---|
| SKU |
HAGSRC04005
|
| Brand |
Hager
|
| Product Type |
Transformers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121000 |
| UOM | EA |
| Vendor Product | SRC04005 |
| Current | Primary 400 Amp/Secondary 5 Amp |
| Depth | 30 mm |
| For Use With | Cable & Busbars |
| Frequency | 50/60 Hz |
| Height | 70 mm |
| IP Rating | IP10 |
| Mounting Method | DIN Rail |
| Output Rating | 5 VA |
| Temperature | -40 to 40 deg C |
| Width | 50 mm |
