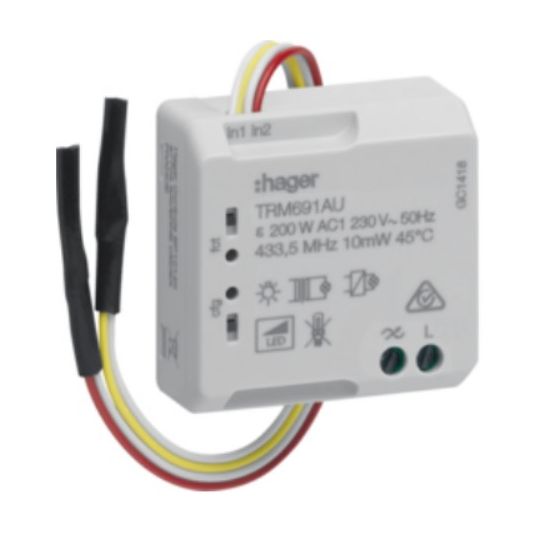

Hager FM RF Dimmer KNX 2 Wires + 2 Inputs 230-240V 2000W
Description
FM RF Dimmer, System Type: KNX, 230-240 Volt AC, Switching Capacity: 200 Watt, Frequency: 50 Hz, Transmission: 433 MHz, Number of Inputs: 2, Number of Outputs: 1, Connection Type: With Screw, Load Type: Universal, IP20, White, Temperature:-15 to 45 deg C, Dimensions: 56mm Diameter x 38mm Height
Key Specifications
| Barcode (EAN-13) |
3250618502084
|
|---|---|
| SKU |
HAGTRM691AU
|
| Brand |
Hager
|
| Product Type |
Dimmers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121800 |
| UOM | EA |
| Vendor Product | TRM691AU |
| Colour | White |
| Dimensions | 56 mm Diameter x 38 mm Height |
| IP Rating | IP20 |
| Frequency | 50 Hz/Transmission: 433 MHz |
| Load Type | Universal |
| Switching Capacity | 200 Watt |
| System Type | KNX |
| Temperature | -15-45 deg C |
| Voltage | 230-240 Volt |
Downloads
