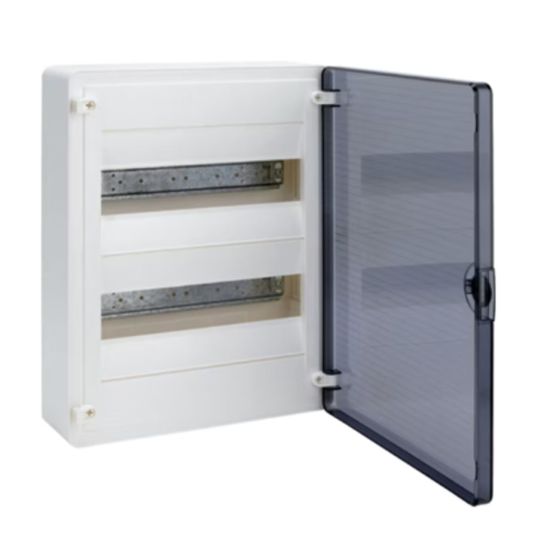

Hager 24 Pole Switchboard Enclosure Surface Mount 400 Volt 80 Amp Plastic Transparent Door

chevron-left
loader
Loading...

Description

chevron-down
Switchboard Enclosure, 400 V, 80 Amp, 2 Rows, 24 Modules, IP40, Surface, Plastic, White,-25 to 40 deg C, 376.5mm Height x 281.5mm Width x 98.5mm Depth, Transparent Door

Key Specifications

chevron-down
Barcode (EAN-13)
3250616594432
SKU
HAGVS212TT
Brand
Hager
Range Name
Golf
Product Type
Switchboard Kits & Enclosures

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Opaque or transparent door for devices up to 70mm installation depth
  • Door opens up to 180 deg and can be fitted on right or left, with optional lock and keys
  • Wall box and cover are symmetrical for removable cable entry slider
  • Cable entries for cable and conduit
  • Earth & neutral terminals
  • Pole fillers
  • Patented marking system
  • Cable management clips
  • Transport protection film
  • Busbar supplied with some references
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product VS212TT
Dimensions 376.5 mm Height x 281.5 mm Width x 98.5 mm Depth
Colour White
Current 80 Amp
IP Rating IP40
Material Plastic
Modules 24 Module
Mounting Method Surface
Number of Rows 2 Rows
Voltage 400 Volt
Temperature -25 to 40 deg C
Please Note Transparent Door
