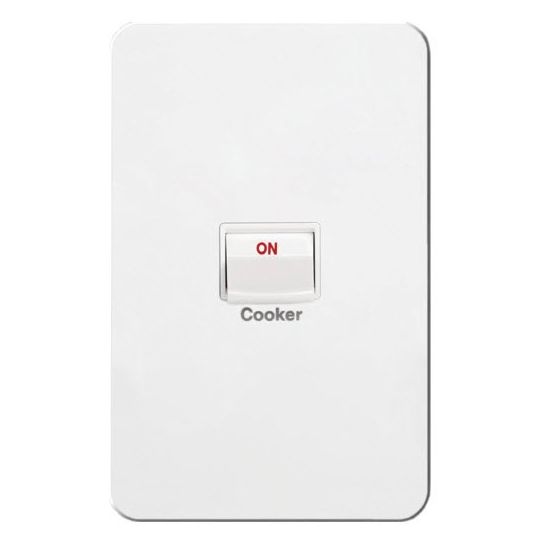

Hager Silhouette Cooker Switch Rocker Flush Mount Standard 1 Gang 40A 250V 2 Pole 2 Way Vertical White

Description

Cooker Switch Rocker, 250 Volt Switch, 40 Amp, 2 Pole, 1 Gang, 2 Way, Off, Button Actuator, Screw Connection, Screw Terminal, 4 x 1.5 sq-mm Terminal Capacity, COOKER ON, Vertical Orientation, IP2X, Flush Mounting, Polycarbonate, White, Glossy, 117 mm Height, 77 mm Width, 22 mtr Depth

Key Specifications

Barcode (EAN-13)	3250617001274
SKU	HAGWBSCKSV1
Brand	Hager
Range Name	Silhouette
Product Type	Cooker Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Rocker features in-built arc shield and chemical resistant pivots All plates fitted with 16AX mechanisms suitable for fluorescent loads 2 way and loop terminal as standard Combination head screws Phillips number 1 backed off for ease of cable insertion Terminals accommodate 4 x 1.5 sq-mm cable Multiple mounting holes No mechanism push back High impact high gloss UV stabilised polycarbonate construction
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	WBSCKSV1
Actuator Type	Button
Colour	White
Configuration	OFF
Connection Type	Screw
Current	40 Amp
Depth	22 mtr
Finish	Gloss
Height	117 mm
IP Rating	IP2X
Legend	COOKER ON
Material	Polycarbonate
Mounting Method	Flush
Number Of Gangs	1 Gang
Number Of Poles	2 Pole
Number Of Ways	2
Orientation	Vertical
Terminal Capacity	4 x 1.5 sq-mm
Terminal Type	Screw
Width	77 mm
