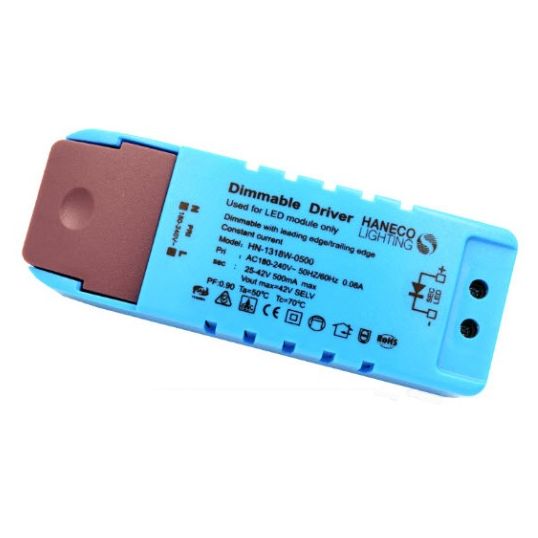

Haneco LED Driver Constant Current Dimmable 20W 220-240V IP20
Loading...
Description
LED Driver Constant Current Dimmable, Input Voltage: 220-240 Volt, Output Voltage: 25-42 Volt, 20 Watt, 500 mA, 50/60 Hz, Dimmable, IP20, Power Factor: 0.95, -20 to 50 deg C, 122 mm Length, 44 mm Width, 29 mm Height
Key Specifications
| SKU |
HANHN1318W0500
|
|---|---|
| Brand |
Haneco
|
| Product Type |
Drivers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39101900 |
| UOM | EA |
| Vendor Product | HN-1318W-0500 |
| Current | 500 mA |
| Dimmable | Dimmable |
| Frequency | 50/60 Hz |
| Height | 29 mm |
| Input Voltage | 220-240 Volt |
| IP Rating | IP20 |
| Output Voltage | 25-42 Volt |
| Power Factor | 0.95 |
| Wattage | 20 Watt |
| Temperature | -20 to 50 deg C |
| Width | 44 mm |
