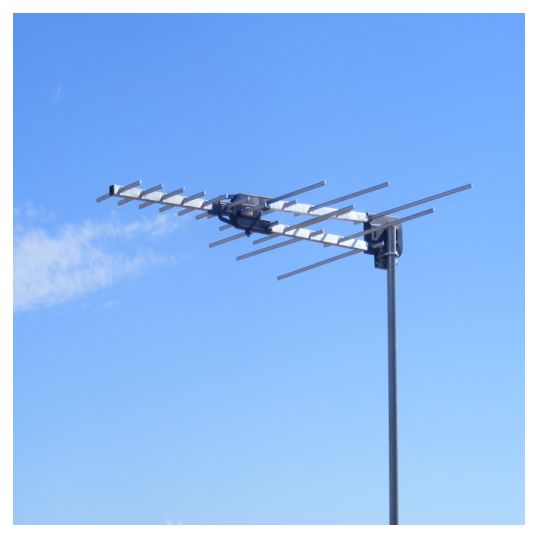

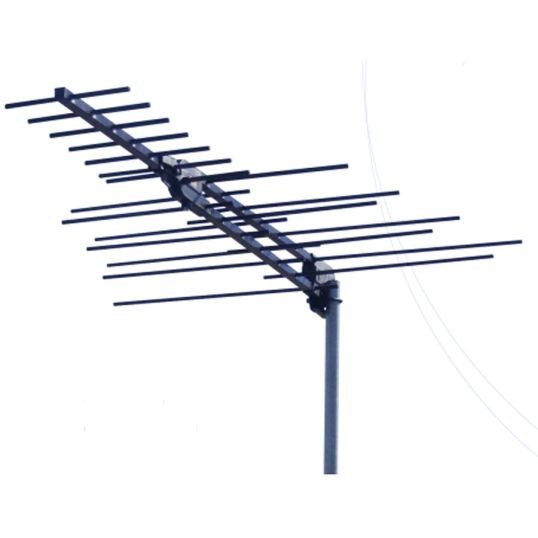

Hills Industries Digital TV Antenna VHF/UHF 6-12/28-38 Channels VHF/UHF 7-9/7-10 dB Gain Female Type Connector Black

chevron-left

Description

chevron-down
Digital TV Antenna, Channels: VHF 6-12, UHF 28-38, Gain (dB): 7-9, 7-10 dB, Front to Back Ratio: 8mm, 177-230/526-599 MHz, Connector Type: F Type Female, Balun Type: PCB Diplexer Balun, Clamp Mounting, For Use With: Digital TV, Aluminium Body, Black

Key Specifications

chevron-down
Barcode (EAN-13)
9311313538083
SKU
HILFB608582
Brand
Hills Industries
Product Type
TV Antennas

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed for the precise digital frequency bands for true HD performance
  • BoomLock manufacturing technology used to secure the elements
  • New mounting clamp for quicker and safer installation
  • Matched diplexer-balun rejects out-of-band interference for minimal picture break-up
  • Strong mechanical construction
  • Lightweight and compact
  • Fully designed and manufactured in Australia
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product FB608582-NLA
Balun Type PCB Diplexer Balun
Channels VHF 6-12/UHF 28-38
Connector Type F Type Female
For Use With Digital TV
Frequency 177-230/526-599 MHz
Front to Back Ratio 8mm
Material Aluminium
Mounting Method Clamp
