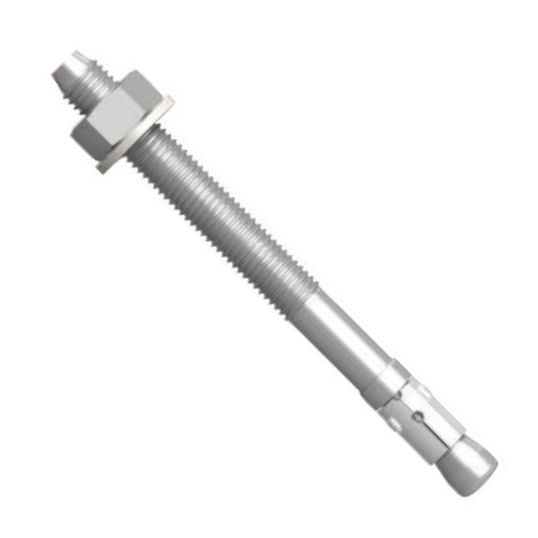

Hobson Wedge Anchor M10x65mm Hex Nut Head Class 5.8 Mechanical Galvanised
Description
Wedge Anchor, M10, Hex Nut Head, 17 mm Head Size, 19.8 mm Washer Diameter, 65 mm Length, 10 mm Drill Diameter, Class 5.8 Grade, 60 mm Embedment Depth, 12 mm Fixture Hole Diameter, 100 mm Minimum Concrete Thickness, 65 mm Minimum Edge Distance, 55 mm Minimum Spacing, 30 Nm Torque Rating, Galvanised
Key Specifications
| Barcode (EAN-13) |
9314818500548
|
|---|---|
| SKU |
HOBMAW58GCM100065
|
| Brand |
Hobson
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 25 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | MAW58GCM100065 |
| Drill Diameter | 10 mm |
| Embedment Depth | 60 mm |
| Finish | Galvanised |
| Fixture Hole Diameter | 12 mm |
| Grade | Class 5.8 |
| Head Size | 17 mm |
| Head Type | Hex Nut |
| Minimum Concrete Thickness | 100 mm |
| Minimum Spacing | 55 mm |
| Minimum Edge Distance | 65 mm |
| Product Type | simple |
| Thread Size | M10 |
| Torque Rating | 30 Nm |
| Washer Diameter | 19.8 mm |
