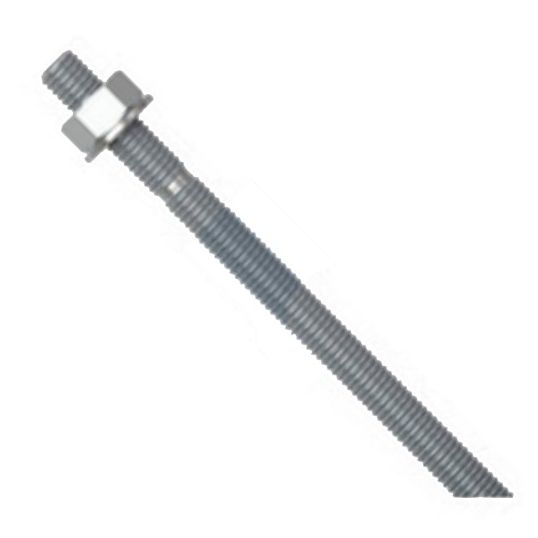

Hobson Stud Chemical Anchor Kit Flat Top Stud M10x130 mm Hex Nut Head 316 Stainless Steel
Description
Stud Chemical Anchor Kit Flat Top Stud, M10, M10 Thread, Hex Nut Head, 17mm Socket Head, 130mm Length, 12mm Drill Diameter, 316 Stainless Steel, 90mm Embedment Depth, 25mm Max. Fixture Thickness, 12mm Fixture Hole Diameter, 120mm Min. Concrete Thickness, 45mm Min. Edge Distance, 45mm Min. Spacing, Tensile Strength: 500 MPa, Torque Rating: 20 N-m, Angle Cut Point
Key Specifications
| Barcode (EAN-13) |
9314818158107
|
|---|---|
| SKU |
HOBMCS16PCM100130
|
| Brand |
Hobson
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 10 |
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | MCS16PCM100130 |
| Diameter | M10 |
| Drill Diameter | 12mm |
| Embedment Depth | 90mm |
| Fixture Hole Diameter | 12mm |
| Head Size | 17mm Socket |
| Head Type | Hex Nut |
| Maximum Fixture Thickness | 25mm |
| Material | 316 Stainless Steel |
| Minimum Concrete Thickness | 120mm |
| Minimum Spacing | 45mm |
| Minimum Edge Distance | 45mm |
| Please Note | Angle Cut Point |
| Product Type | Stud Chemical Anchor Kit Flat Top Stud |
| Tensile Strength | 500 MPa |
| Thread Size | M10 |
| Torque Rating | 20 N-m |
