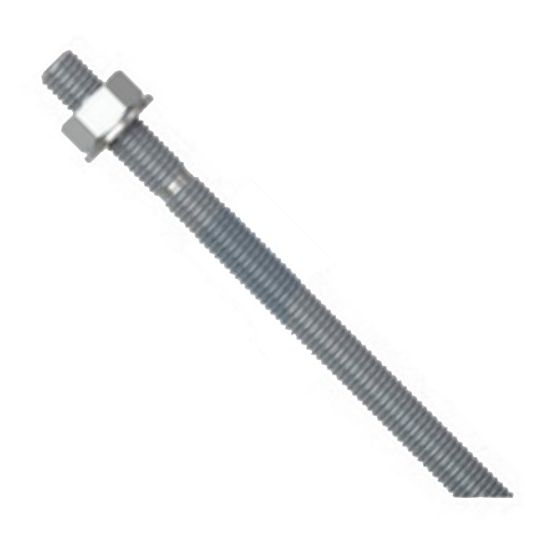

Hobson Stud Chemical Anchor Kit Flat Top Stud M20x260 mm Hex Nut Head 316 Stainless Steel

Description

Stud Chemical Anchor Kit Flat Top Stud, M20, M20 Thread, Hex Nut Head, 30mm Socket Head, 260mm Length, 25mm Drill Diameter, 316 Stainless Steel, 170mm Embedment Depth, 59mm Max. Fixture Thickness, 22mm Fixture Hole Diameter, 220mm Min. Concrete Thickness, 85mm Min. Edge Distance, 85mm Min. Spacing, Tensile Strength: 500 MPa, Torque Rating: 120 N-m, Angle Cut Point

Key Specifications

Barcode (EAN-13)	9314818158206
SKU	HOBMCS16PCM200260
Brand	Hobson

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good load capability Non expanding type fastener Resistant to vibration Complete sealing of hole Can be installed close to edge Reduced spacing between anchors Excellent holding power in weak base materials
Standard Pack Size	10
UNSPSC Class	31162100
UOM	EA
Vendor Product	MCS16PCM200260
Diameter	M20
Drill Diameter	25mm
Embedment Depth	170mm
Fixture Hole Diameter	22mm
Head Size	30mm Socket
Head Type	Hex Nut
Maximum Fixture Thickness	59mm
Material	316 Stainless Steel
Minimum Concrete Thickness	220mm
Minimum Spacing	85mm
Minimum Edge Distance	85mm
Please Note	Angle Cut Point
Product Type	Stud Chemical Anchor Kit Flat Top Stud
Tensile Strength	500 MPa
Thread Size	M20
Torque Rating	120 N-m
