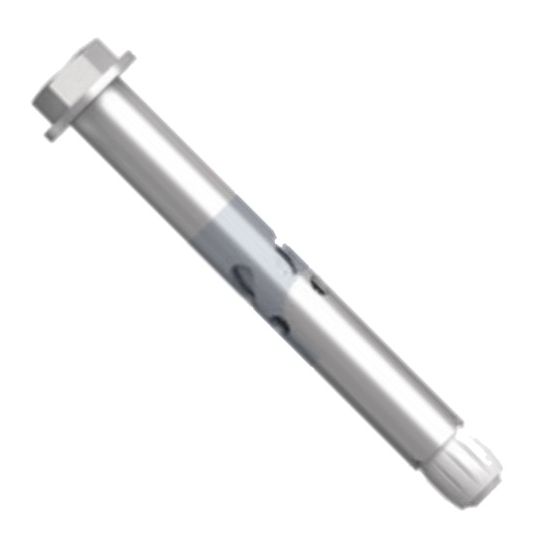

Hobson Sleeve Anchor Flush Head 12x80mm Class 8.8 Zinc Passivated Yellow

chevron-left

Description

chevron-down
Sleeve Anchor Flush Head, 12 mm, M10 Thread, 15mm Width Head, 20.3mm Washer Diameter, 80mm Length, 60mm Min Drill Depth, 12mm Drill Diameter, Class 8.8, Zinc Passivated Yellow, 14mm Fixture Hole Diameter, 100mm Min. Concrete Thickness, 75mm Min. Edge Distance, 75mm Min. Spacing, Torque Rating: 40 N-m

Key Specifications

chevron-down
Barcode (EAN-13)
9314818501439
SKU
HOBMTH88YM120080
Brand
Hobson

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Simple installation through object to be fastened
  • Variety of diameters & lengths to suit different applications
  • Low costs on supply and installation
  • Can be immediately used
Standard Pack Size 25
UNSPSC Class 31162100
UOM EA
Vendor Product MTH88YM120080
Drill Diameter 12mm
Drill Depth 60mm Min
Diameter 12mm
Finish Zinc Passivated Yellow
Fixture Hole Diameter 14mm
Grade Class 8.8
Head Size 15mm Width
Head Type Flush
Minimum Concrete Thickness 100mm
Minimum Edge Distance 75mm
Minimum Spacing 75mm
Product Type Sleeve Anchor Flush Head
Thread Size M10
Torque Rating 40 N-m
Washer Diameter 20.3mm
